Finen 6U 600x600mm Swing Frame Cabinet SF6U

Finen 6U 600x600mm Swing Frame Cabinet

Specifications:

• 19-inch standard
• Removable Side Panels, sidelocks optional
• Knock off hole for entering cable on both top covers, bottom panel, real panel
• The turning angle of the front door and is over 180 degrees

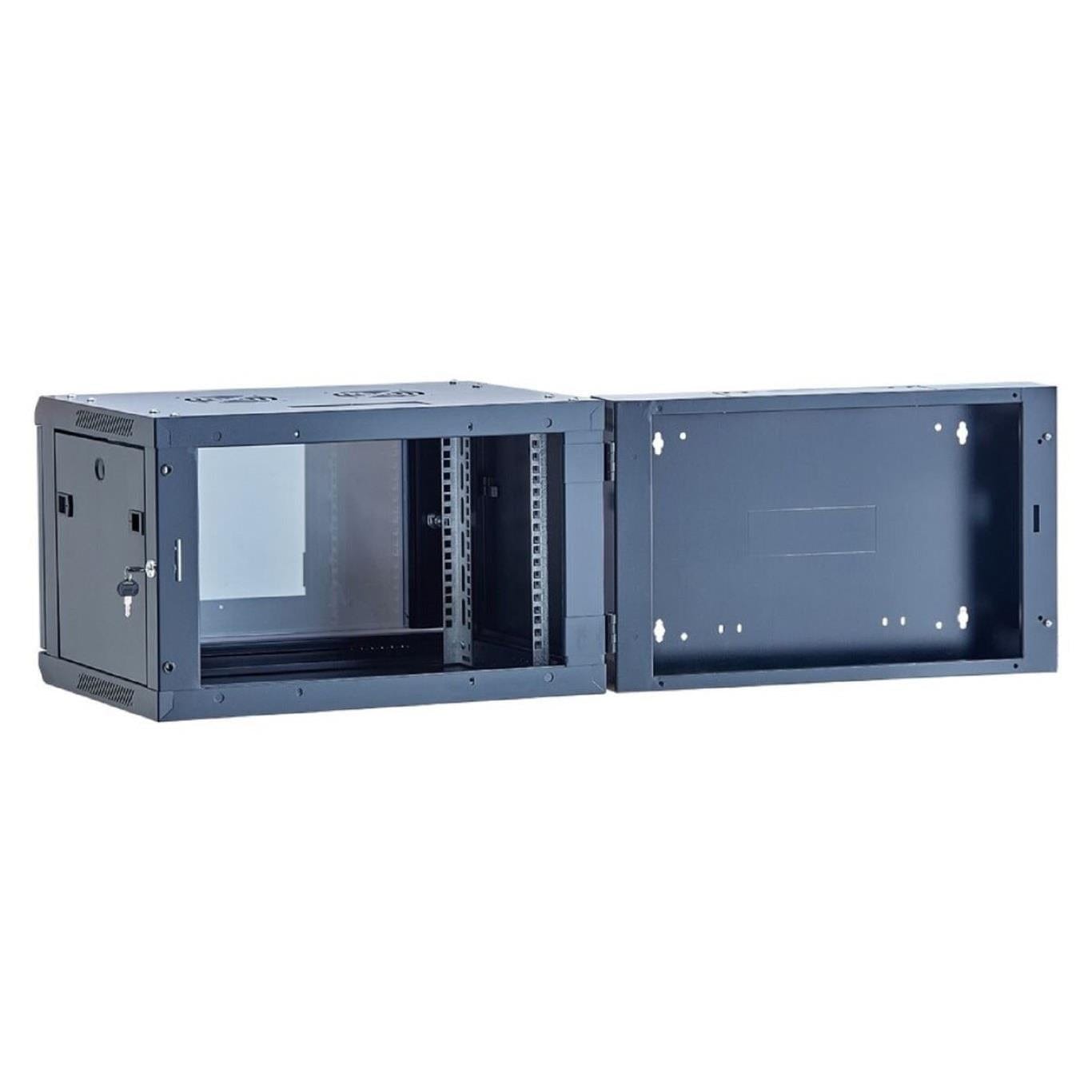

• The turning angle of the swing panel is over 180 degrees, It is convenient to check the equipment from the backside.
• Easy mounting installation
• Unassembled package saving shipping space
• Fan, shelf, PDU are optional
• Loading Capacity: 80 Kg
• Degree of Protection: IP20
• Material: SPCC Cold Rolled Steel
• Thickness:2.0mm-1.2mm-1.0mm
• Surface Finish: Powder coating
• Capacity: 6U
• Width: 600 mm
• Depth: 500 + 100
• Height: 368
• Colour: Black
• Model: WM - Toughened Glass Door
• Lock: Small Round Lock

Please Note: Unit is Unassembled.

What's in the box:

• 1 x Frame
• 1 x Swing Panel
• 2 x Side Panel
• 1 x Top Cover
• 1 x Bottom Panel
• 4 x Mounting Profile
• 1 x Front Door
• 2 x Lock
• 12 x M6 Square Nut
• 12 x M6 B-Head Screw
• 1 x Allen Wrench
