Giada DF610 Barebone PC - Intel Core i5-10210U Digital Signage Player DF610-10210U40M0G-GIA

Giada DF610 Barebone PC - Intel Core i5-10210U Digital Signage Player DF610-10210U40M0G-GIA

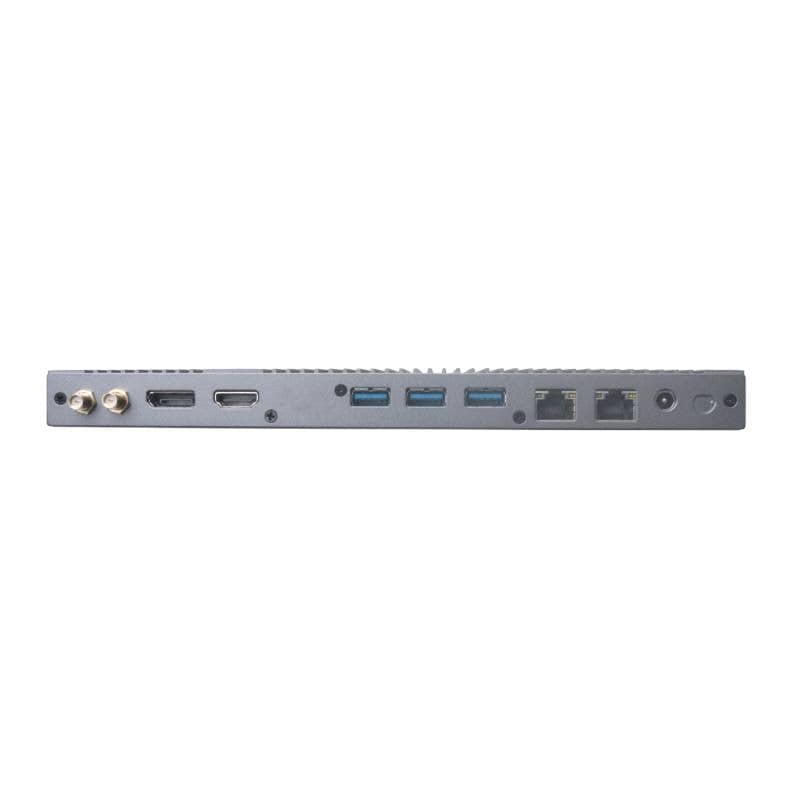

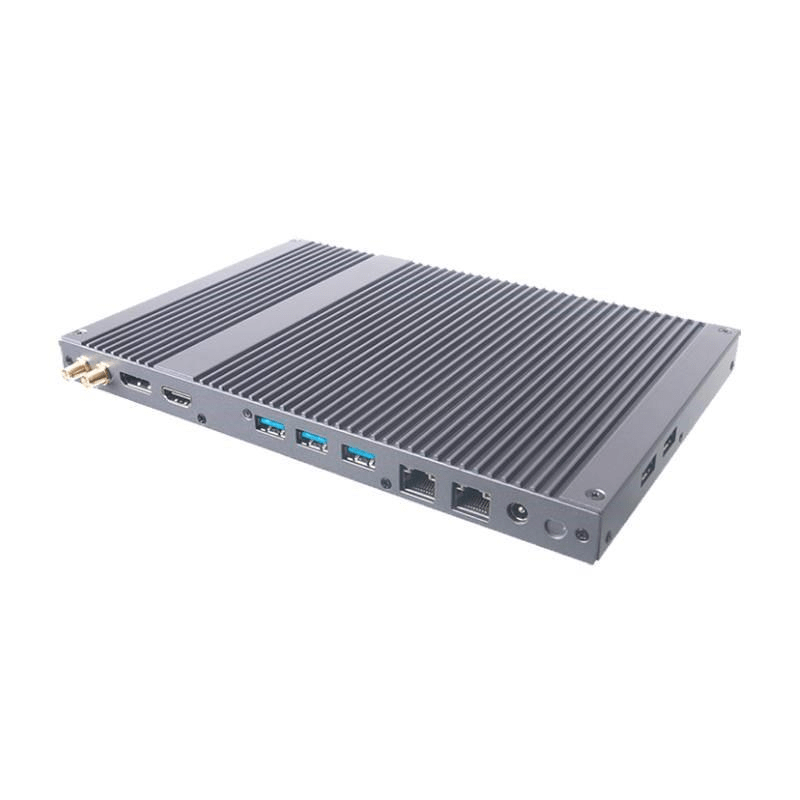

The Giada DF610 i5-10210U Comet Lake High-end Fanless Player is an embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel®Core™ i5-10210U CPU, plus one HDMI port and a DisplayPort output with up to 4K resolution support. Its HDMI, DisplayPort, USB ports, gigabit LAN, Windows and Linux OS support, and support for M.2 SSDs and mini-PCIe 3G, and 4G cards make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.

FEATURES:

• Intel(R) Core™  i5-10210U CPU
• 1 x DP, 1 x HDMI, Supporting 4K Display
• 2 x SO-DIMM DDR4 Memory, Up to 32GB Support
• 1 x M-key M.2 (2242/2280) for SATA/NVMe
• 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G

SPECIFICATIONS:

• Processor:
  • CPU: Intel(R) Core™  i5-10210U
  • BIOS: AMI Source Code
  • Chipset: SOC
• Memory:
  • Type: DDR4-2400MHz
  • Socket: 2 x SO-DIMM
  • Max Size: 32GB
• Graphics:
  • GPU: Intel® 10th Gen. UHD Graphics
  • Graphic Engine: Direct3D 2015, OpenGL 4.5, OpenCL 2.1
  • DP: 1 x DP (Max.4096 x 2304 @60Hz)
  • HDMI: 1 x HDMI (Max.4096×2304 @60Hz)
• Network:
  • Controller: 2 x Realtek 8111G  Gigabit Ethernet
  • Interface: 2 x RJ45
• I/O:
  • USB: 5 x USB 3.2 Gen2 (10 Gbps)
  • Serial Port: 1 x RS232
  • Audio: 1 x AUDIO-OUT, 1 x MIC-IN
  • Mini-PCIe: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
  • M.2(2230): 1 x M.2(2230) for WiFi
  • SIM: 1 x SIM Slot
• Storage
  • M.2: 1 x M.2(2242/2280) for SSD
• JAHC Tech:
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On: Power Activated Automatically Start
  • Remote Control: By IR Controller for Power On
  • RTC: Set Up Independently Every day, A Week as a Cycle
  • Wake On Lan: Yes
• Operating System:
  • Windows: Windows 10（64-Bit）
  • Linux: Support
• Power:
  • Power Type: DC-IN
  • Input Voltage: 19V / 3.42A
• Environment:
  • Operating Temperature: 0℃ ~ 40℃ ( 32 â„‰ ~ 104 â„‰ ) at 0.7m/s Air Flow
  • Relative Humidity: 95%@40℃ (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mechanical:
• Construction: Metal
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ300)
• Colour: Black
• Product Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

• Giada DF610 i5-10210U Comet Lake High-end Fanless Player x1
• WiFi Antenna x2
• User Manual x1
