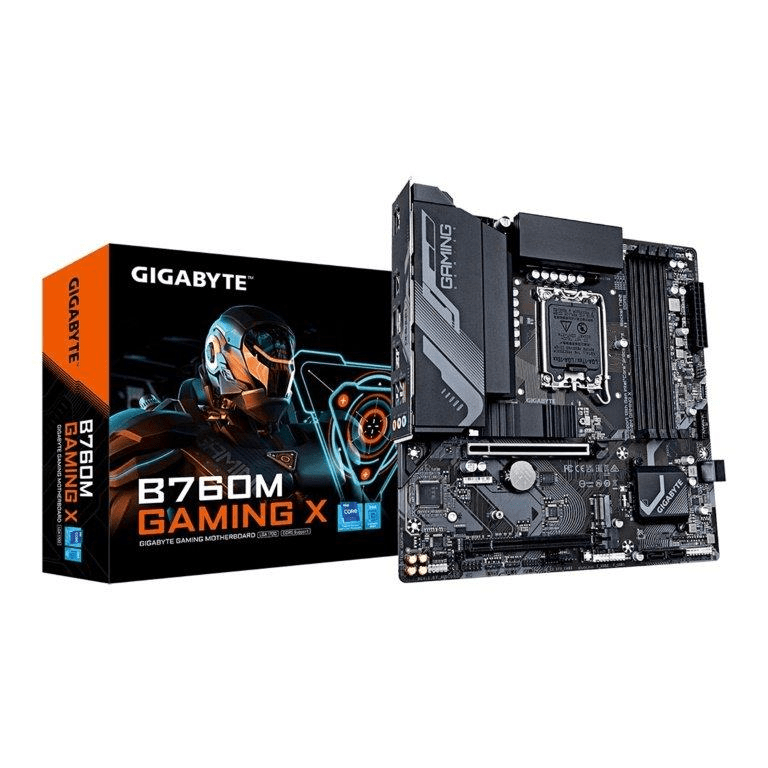

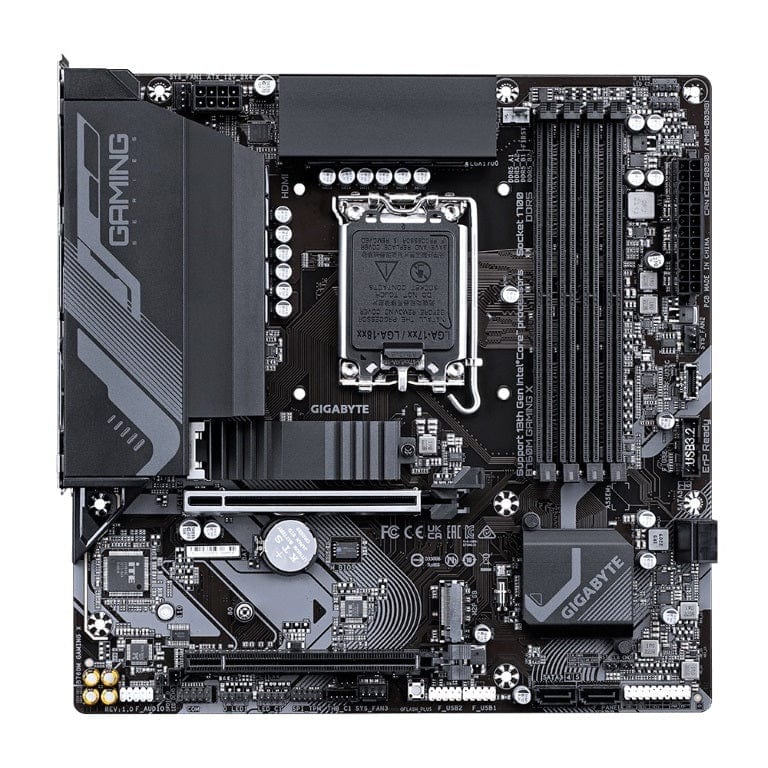

Gigabyte B760M Gaming X Intel LGA 1700 mATX Motherboard GA-B760M-GAMING-X

Gigabyte B760M Gaming X Intel LGA 1700 mATX Motherboard GA-B760M-GAMING-X

Features

• Supports Intel Core 14th / 13th / 12th processors
• Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
• Dual Channel DDR5: 4x DIMMs XMP Memory Module Support
• Next Generation Storage: 2x PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch: PCIe 4.0 x16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN
• Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Hybrid Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, Gigabyte GAMING series motherboard equip the best VRM design ever built with the highest quality components.

PCIe 4.0 Design

Gigabyte B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, Gigabyte R&D uses the low impedance PCB to provide the maximum performance.

Unlock DDR5

DDR5 Overclocking Up to 7600 and Beyond*

Gigabyte is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their Gigabyte motherboard

Dual PCIe 4.0 x4 M.2

Gigabyte Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Gigabyte PerfDrive

PerfDrive technology integrates multiple Gigabyte exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Outstanding Thermal Design

Gigabyte Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

Multi-Cut Design

TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Multiple temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Connectivity

First adopter on 2.5GbE LAN onboard

2x Faster than ever

Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.

Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - Front USB3.2 Gen 2 Type-C

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

High-End Audio Capacitors

Gigabyte motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

Gigabyte motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

UEFI BIOS

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With Gigabyte Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Technical Specification

• 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4x SATA 6Gb/s connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x CPU fan header
• 3x system fan headers
• 2x addressable LED strip headers
• 2x RGB LED strip headers
• 2x M.2 Socket 3 connectors
• 4x SATA 6Gb/s connectors
• 1x front panel header
• 1x front panel audio header
• 1x S/PDIF Out header
• 1x USB Type-C header, with USB 3.2 Gen 2 support
• 1x USB 3.2 Gen 1 header
• 2x USB 2.0/1.1 headers
• 2x Thunderbolt add-in card connectors
• 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1x serial port header
• 1x Q-Flash Plus button
• 1x reset jumper
• 1x Clear CMOS jumper

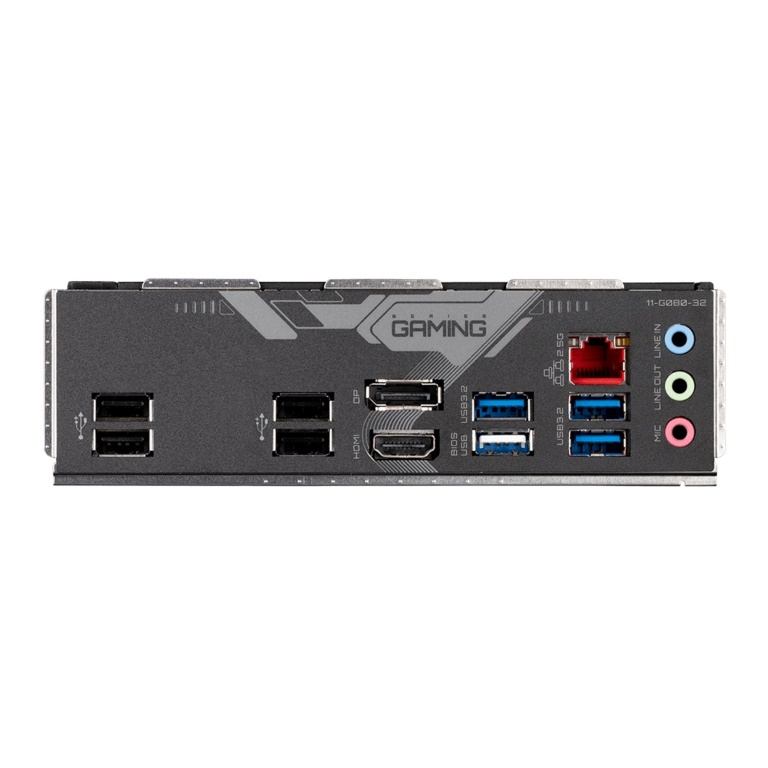

• 3x USB 3.2 Gen 1 ports
• 5x USB 2.0/1.1 ports
• 1x HDMI 2.0 port
• 1x DisplayPort
• 1x RJ-45 port
• 3x audio jacks
