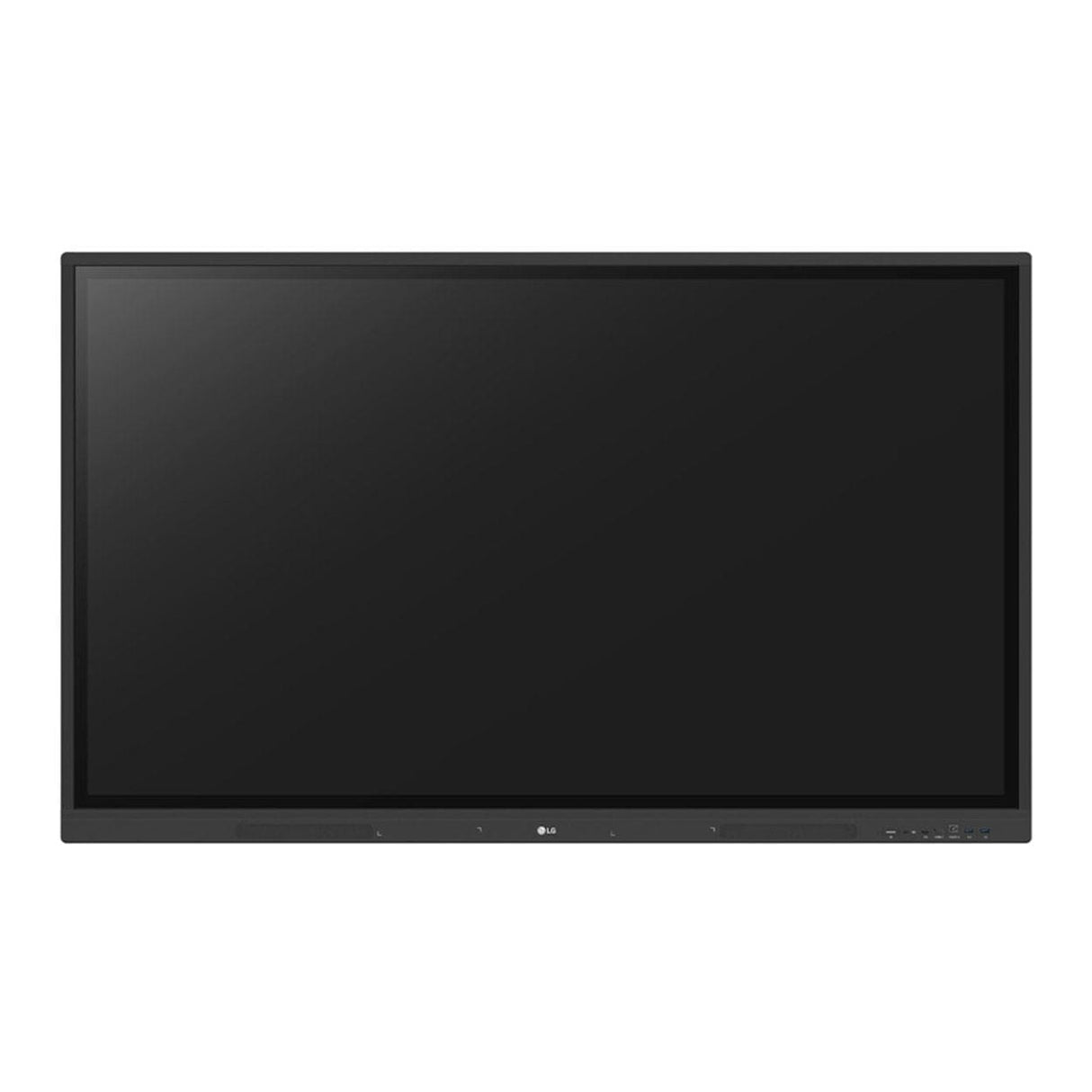

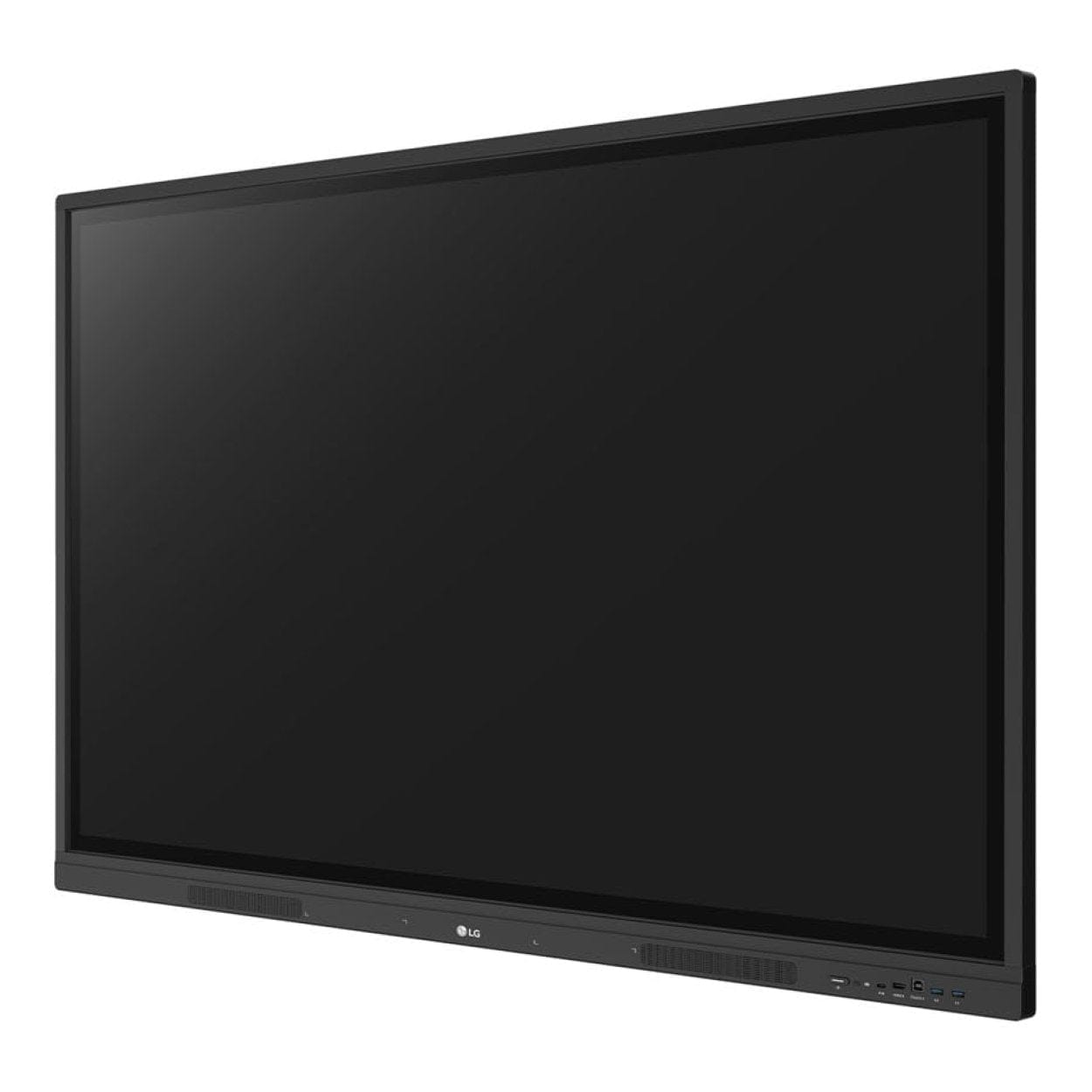

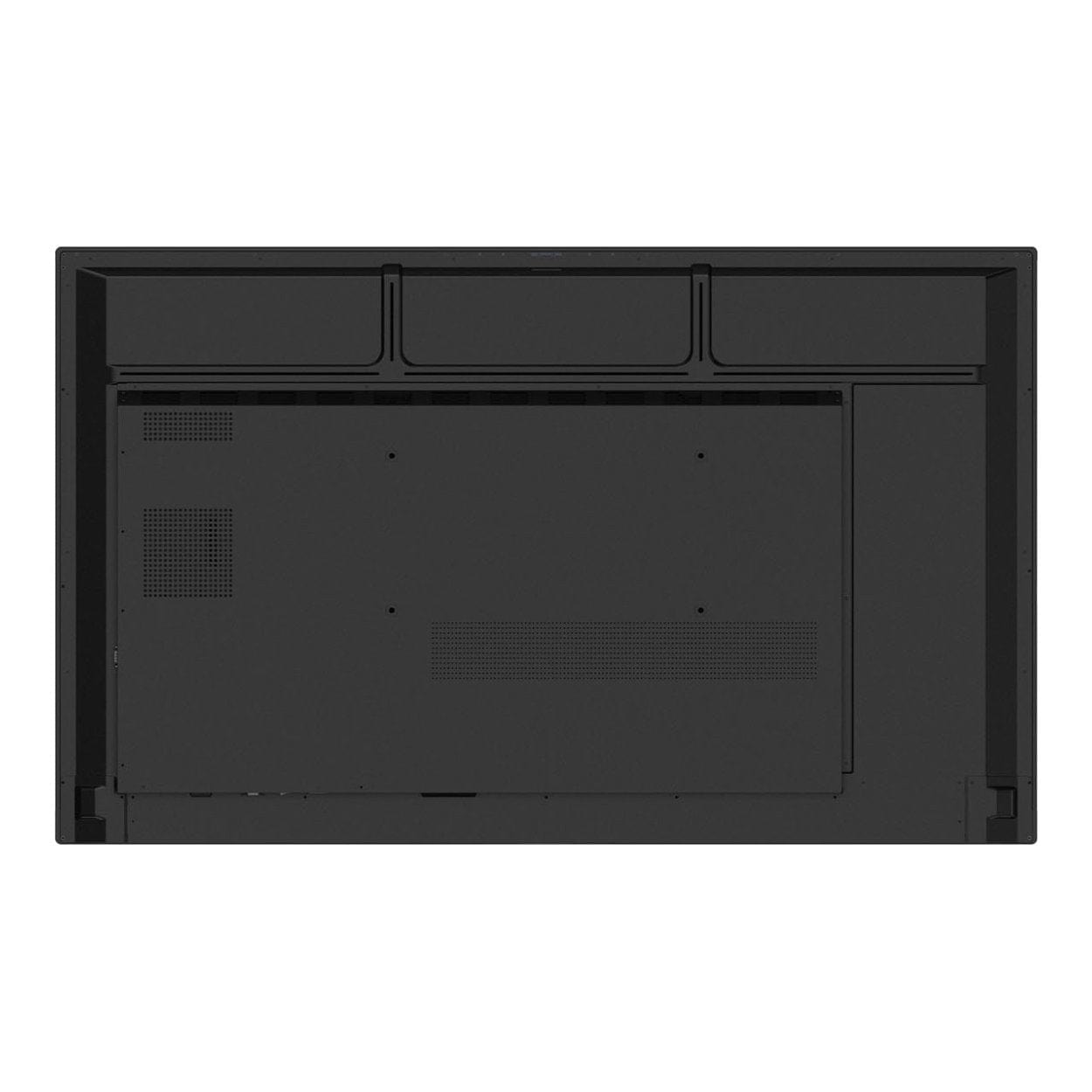

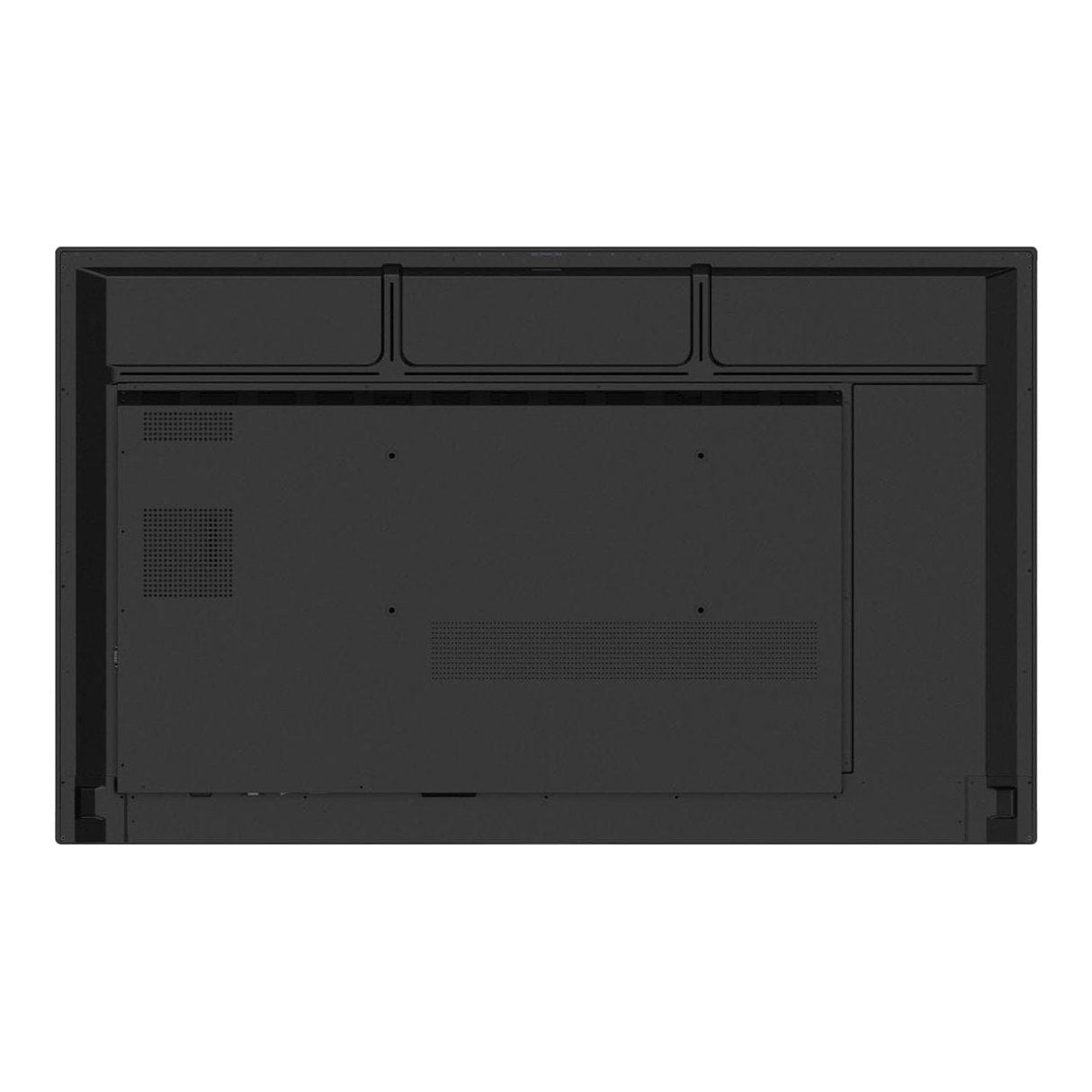

LG CreateBoard 55TR3DK 55-inch 4K UHD Interactive Large Format Display

LG CreateBoard 55TR3DK 55-inch 4K UHD Interactive Large Format Display

Key Features

• Internal Memory: 32GB (Storage) / 4GB (RAM)
• Brightness (w/o Glass): 440 nit (Max.), 390 nit (Typ.)
• Resolution: 3,840 x 2,160 (UHD)
• Multi-Touch Point: 40 Points (Max.)

A New Level of Classroom with LG CreateBoard

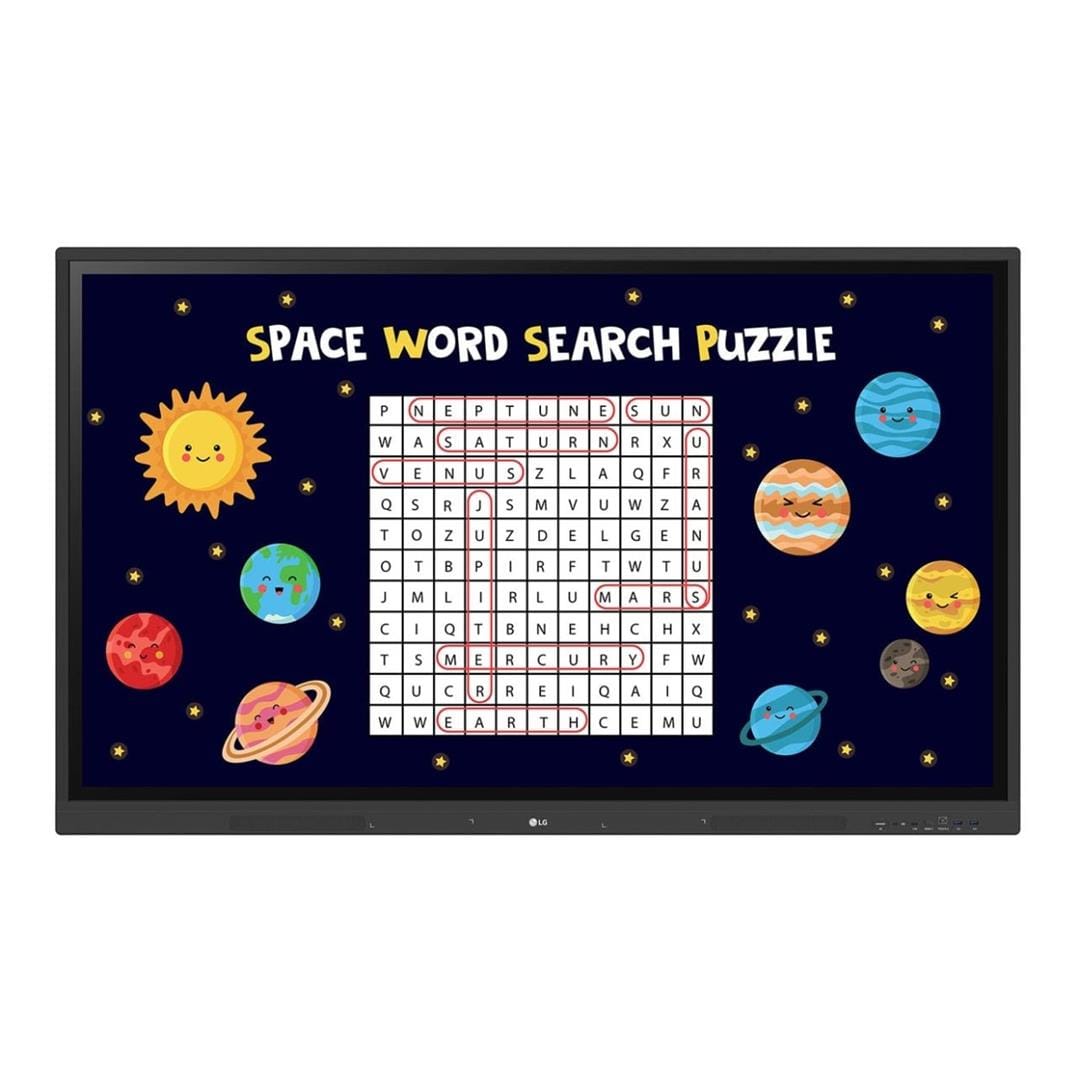

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

• A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.*
• Up to 10 points can be recognized in the writing app.*

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

• LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.*
• For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).*

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

• 'LG ConnectedCare DMS' needs to be purchased separately.*
• The availability of the 'LG ConnectedCare DMS' service differs by region, so please contact the LG sales representative in your region for more details.*
• LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now(plus more to come) under a cloud environment.*

Remote-control / Scheduling

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

Broadcasting / Alert Messaging

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.

Threshold Settings

Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.

Monitoring & Fault Diagnosis

An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.

Issue Management

Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

C-type Connection

USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

• USB Type-C cables are sold separately.*

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.

Advanced Eye-Care

LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor's backlight, users can use the device with more comfort even when using it for a long time.

Front Connectivity Design

LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

• OPS: Open Pluggable Specification*
• OPS Player for LG CreateBoard is sold separately.*

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

• Multi window mode may not work for some apps.*
• PIP mode is available for the external source screen.*

Power Saving

When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.

Secure Function

Screen Lock

Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.

Secure Mode

LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.

USB Lock Mode

USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.

Auto-remove Files

Users can set LG CreateBoard to delete files regularly for enhanced security.

Easy Transportation with LG Universal Stand

The LG Createboard can be used anywhere indoors where it can be easily wheeled around. From classrooms to in-between spaces, it plays various roles according to each need such as lectures, group discussions, school announcements, and more.

• The stand is sold separately. (ST-860F)*
• The product needs to be plugged into the appropriate power source to operate.**
• The image is created based on the 86” model.***

Technical Specification

Product: LG 55TR3DK-B Display

Product type: Large Format Display

Product design: Digital signage flat panel

Display diagonal: 139.7 cm (55")

Display resolution: 3840 x 2160 pixels @ 60 Hz

Display: Touchscreen

Available object size for touch: Ø2 mm ↑

Touch reponse Time: ≤5ms

Touch accuracy: ±1mm

Touch interface: USB 2.0

Touch protection glass thickness: 3T(Anti-Glare)

Touch protection glass transmission: 88%

Touch multi touch point: Max 40 points

Display brightness: 440nit(wo Glass, max), 390nit (wo Glass, typ), 400nit(w Glass, typ), 350nit (w Glass, typ)

Contrast Ratio: 1200:1

Aspect ratio: 16:9

Display Response time: 8ms

Back light type: Direct

Panel technology: IPS

Surface treatment(Haze): Haze 25%

Life time: 50,000 hrs (L30)

Operation hours (Hours/Day): 16/7

Processor: Quad core A55

RAM capacity: 4 GB

Storage capacity: 32 GB

GPU: Mali G52MP2

Speakers: 2 x 15 W

Connectivity: Wi-Fi 6, Bluetooth 5.0

Operating system installed: webOS ver. (Android 11.0)

VESA mount: 400 x 200mm

OPS Type compatible: Yes (Slot)

OPS Power built-in: Yes

Product colour: Black

Weight: 26.1 kg

Warranty: 3-Year Carry-in

Input Ports

• HDMI (3, HDCP2.2)
• RGB (1, VGA)
• Audio In
• RS232C IN
• Gig RJ45 (LAN)
• USB3.0 Type A (4)
• USB2.0 Type A (1)
• USB Type-C (1, USB-PD, DP-Alt,)

Output Ports

• DP Out (HDMI Out)
• Audio Out (1, Optical 1(SPDIF))
• Touch USB (2)
• RJ45 (LAN)
