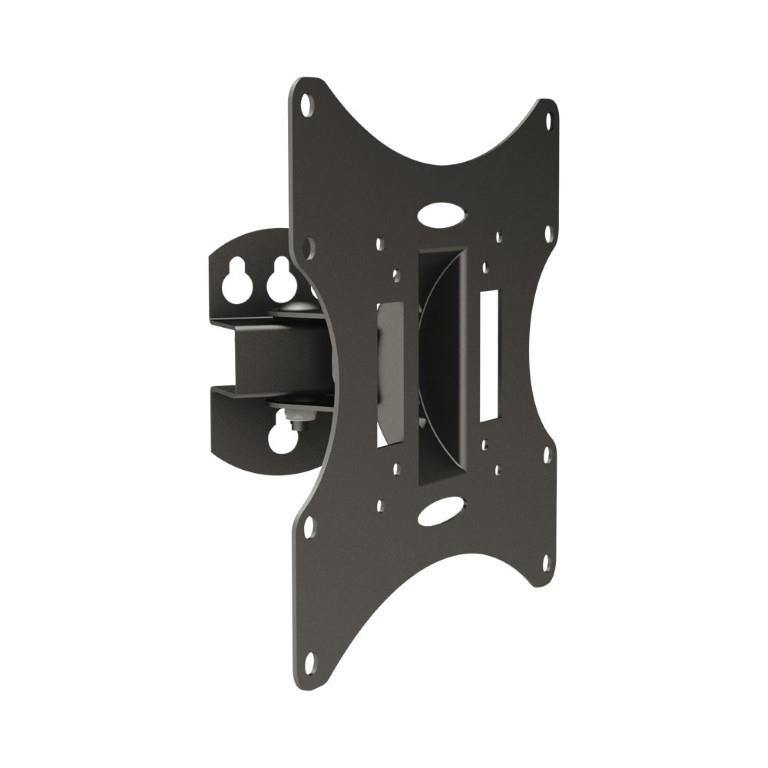

Lumi LCD-501A Economy Pivoting 23 to 42-inch Wall Mount Bracket

Lumi LCD-501A Economy Pivoting 23 to 42-inch Wall Mount Bracket

For most 23 to 42-inch LED, LCD flat panel TVs

The popular model LCD-501A is one of the Classic products and is designed to fit any 23’’-42’’ Flat Panel TV up to 30kgs. Simple construction equipped with full decorative cover routes cables inside arm for a clean look. Adjustable swivel arm and tilt plate provides maximum viewing flexibility. VESA compatible with 75x75, 100x100, 200x100, 200x200mm.

Features

• Free-tilting & Swiveling Design: for multiple TV viewing angles
• Easy-Grip Knobs: for quick tilt and lock
• Sturdy Steel Construction: provides a solid and long-lasting performance

Technical Specification

Product Category: Full-motion TV Wall Mount
Rank: Economy
Material: Steel
Metal Sheet Thickness: VESA Panel THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet
Surface Finish: Powder Coating
Colour: Matte Black

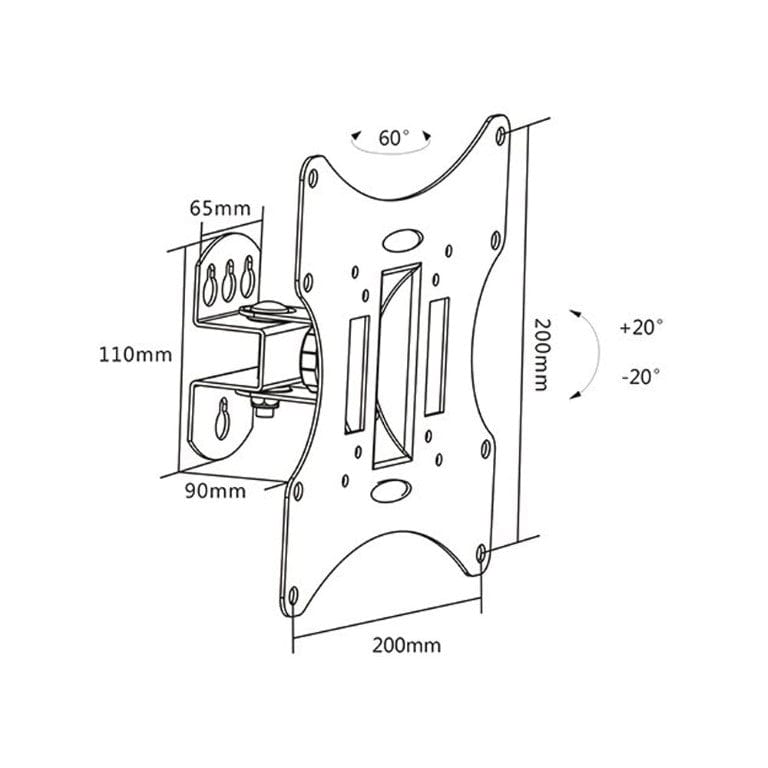

Dimensions: 90 x 220 x 220mm
Fit Screen Size: 23"-42"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Only
VESA Compatible: 75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm
Max. Mounting Hole: 200 x 200mm
Weight Capacity: 30kg
Profile: 90mm
Tilt Range: +20°~-20°
Swivel Range: +30°~-30°
Installation: Single Stud
Panel Type: Fixed Panel
Wall Plate Type: Slide-in Wall Plate
Cable Management: No
Anti-theft: No
