Mikrotik Cloud 4-port PoE Router Switch White CRS304-4XG-IN

Mikrotik Cloud 4-port PoE Router Switch White CRS304-4XG-IN

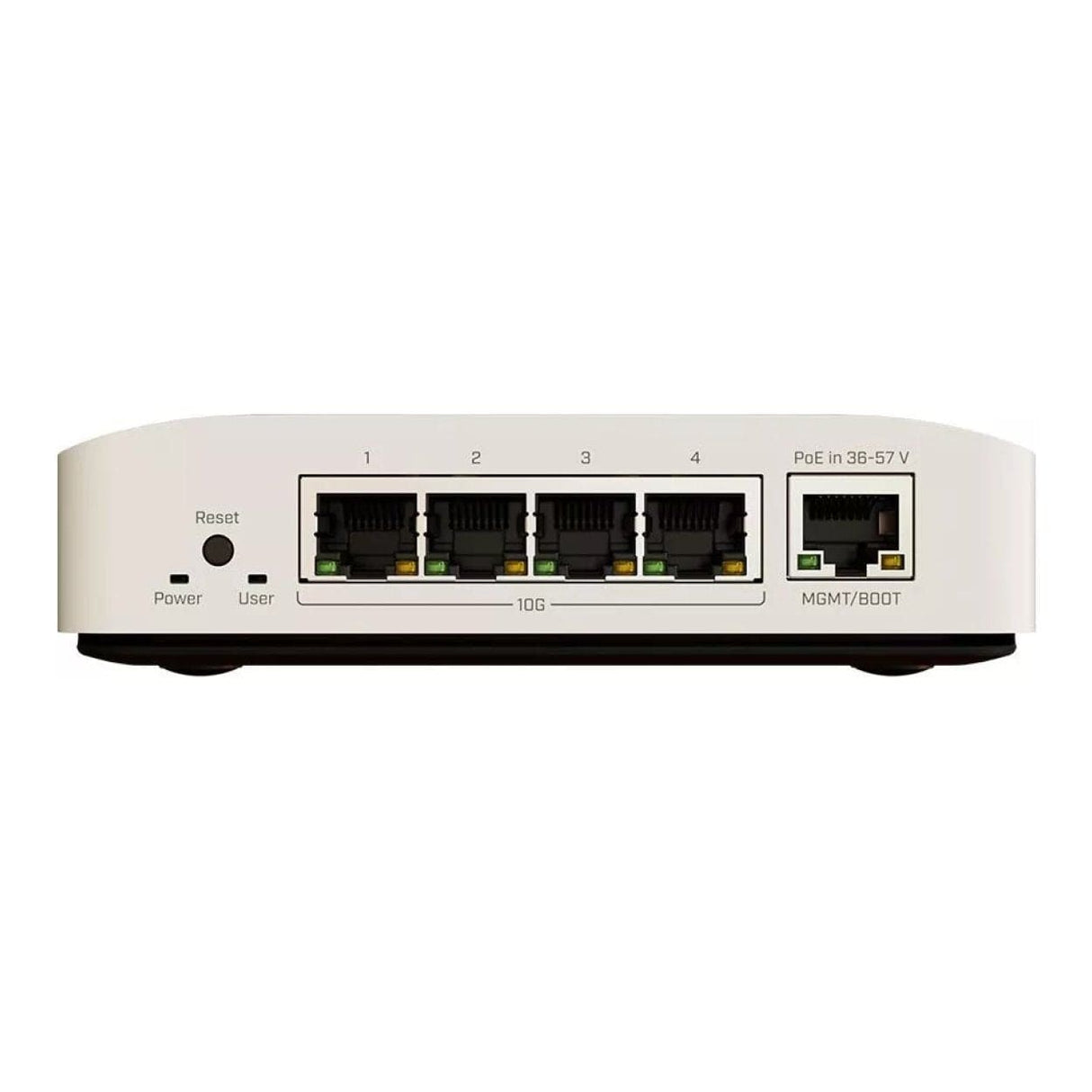

MikroTik's RB-CRS304XG is a Cloud Router Switch featuring 4x 10Gbps Ethernet Ports and 1x Gigabit Management Port. This switch includes a convenient DIN rail mount on the side and standard screw attachment points on the back. It also offers 4 different power inputs, 2x DC jacks, a 2-pin terminal, and PoE-input. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.

Innovative Design Meets Silent Operation

The CRS304 features an enclosure that doubles as a robust, lightweight heat sink, eliminating the need for active cooling. This fanless design ensures silent operation, making it ideal for any environment where noise is a concern – offices, libraries, or even your bedroom homelab! The sturdy form-factor provides a premium feel, balancing comfortable weight and durability, all at an accessible price point.

Versatile Mounting Options

This switch includes a convenient DIN rail mount on the side and standard screw attachment points on the back, allowing for seamless integration literally anywhere. Furthermore, the side DIN rail mount can be moved to the back of the switch.

Multiple Powering Options for Ultimate Reliability

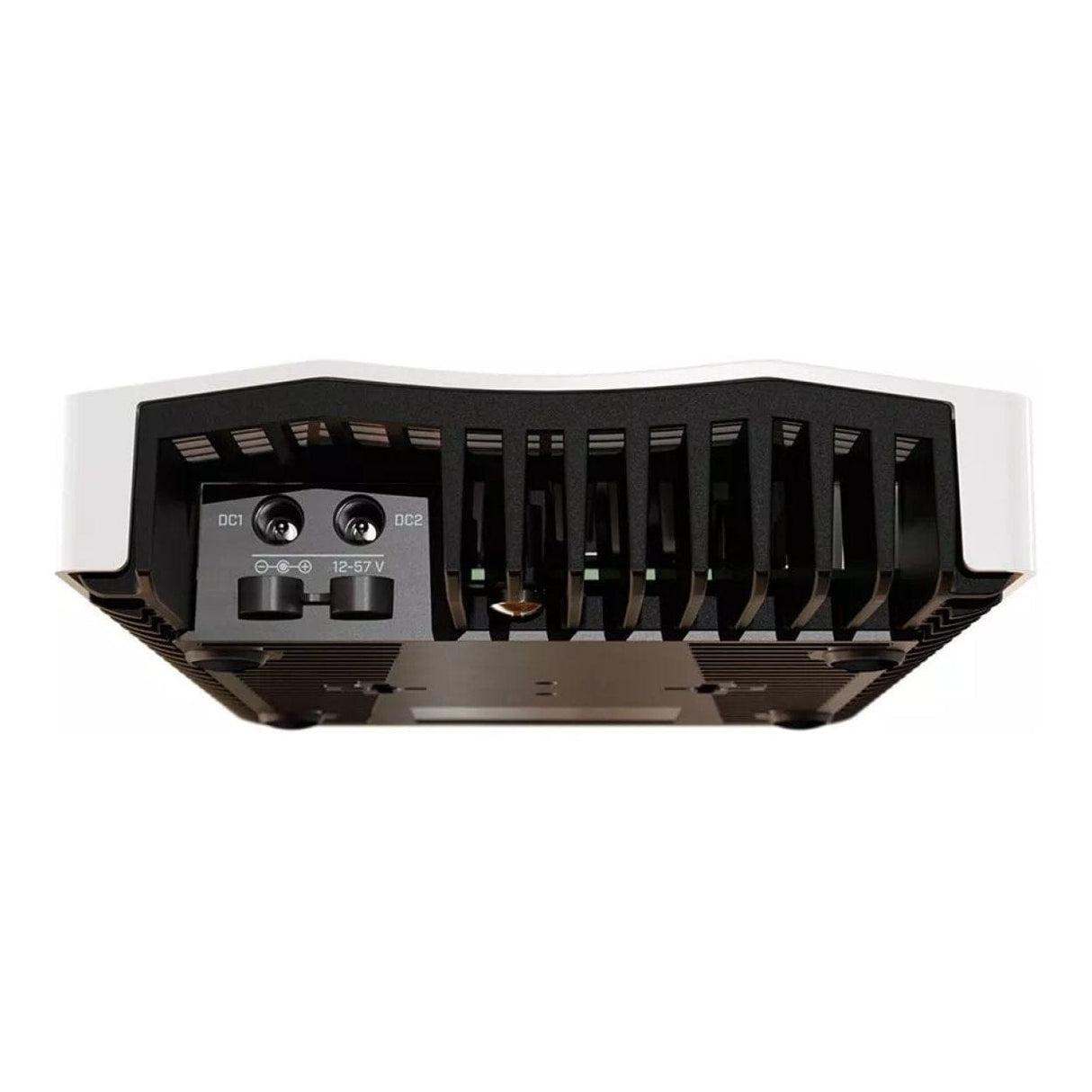

Power redundancy is a key feature of the CRS304. It offers four different power input options: two DC jacks, a 2-pin terminal, and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.

Small Frame, Big Game

Powered by a dual-core ARM CPU and the mighty Marvell Prestera switch chip, the CRS304 delivers exceptional performance for its tiny size. Port-to-port forwarding, broadcast storm control, MAC filtering, VLANs, traffic mirroring, bandwidth limitations, and even some Layer 3 hardware offloading – not a problem for the CRS304-4XG-IN!

Your Backpack Server Room

The CRS304’s small form factor and enhanced durability make it an ideal choice for both stationary and mobile applications. Place it on your desk or keep it in your backpack for on-the-go networking – this is a must-have switch for any network administrator.

Specifications

Ethernet Ports: 4x 10Gbps : 1x 10/100/1000 (Management Port)

Hardware Button: Reset

Max. Power Consumption: 15W

Mounting: Desktop or DIN Rail Mount

Operating System: RouterOS (Level 5 Licence)

Operating Temperature: -40°C to 70°C

PoE Input: 802.3af/at

PoE Output: None

Power Input: 48V 0.95A Power Supply

Processor: Dual Core 1200MHz 98DX2528

Serial Interface: None

SFP Ports: None

Supported Voltage Range: 36-57V (PoE) 12-57V (DC Input)

System Memory: 512MB

USB Ports: None

Other: Terminal DC Input

Dimensions: 176 x 128 x 35 mm
