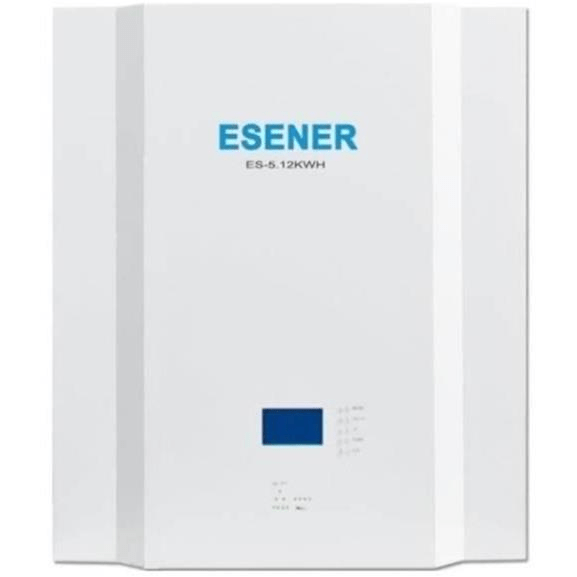

Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module SOLES51LB100A

Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module SOLES51LB100A

The Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Or Shelf Rack Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 7KVA .Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)

Highlights

• Esener 51.2V 100Ah LiFePo4 Single Battery Module
• Wall Mount Or Shelf Rack Installation With Brackets Included
• Complete with integrated Battery Management System (BMS)
• Advanced BMS With Current Limiting Factor
• Parallel Connection Up To 15 Packs With Full Communication To A Total Of 72kwh
• Normal Voltage: 51.2V
• Rated Capacity (5HR):110Ah
• Total Usable 4.8 kWh
• Maximum Continuous Charging Current: 100A
• Maximum Continuous Discharging Current: 100A
• Equalised Charge Voltage: 58.4V
• Low Self-Discharge
• High Energy Density and Conversion Efficiency
• Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
• LCD Control Panel
• Bulk Voltage 55.2V-56.8V
• Float Voltage 52.8V-54.4V
• Cut-off Voltage 44.0V-45.6V

 Specifications

• Complete with integrated Battery Management System
• Rated Capacity (5HR): 110Ah
• Voltage: 51.2V
• Discharge Cut-off Voltage: 40.0V
• Equalised Charge Voltage: 58.4V
• Maximum Continuous Charging and Discharging Current: 100A
• Display: LCD
• Parallel: Parallel connection up to 15 packs with full communications
• Cells: New Li-Ion Prismatic Cells
• Design Life: -/+ 15 Years
• Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
• Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
• Dimensions (WxDxH): 505mm x 162mm x 543mm
• Weight: Approx. 46kg
