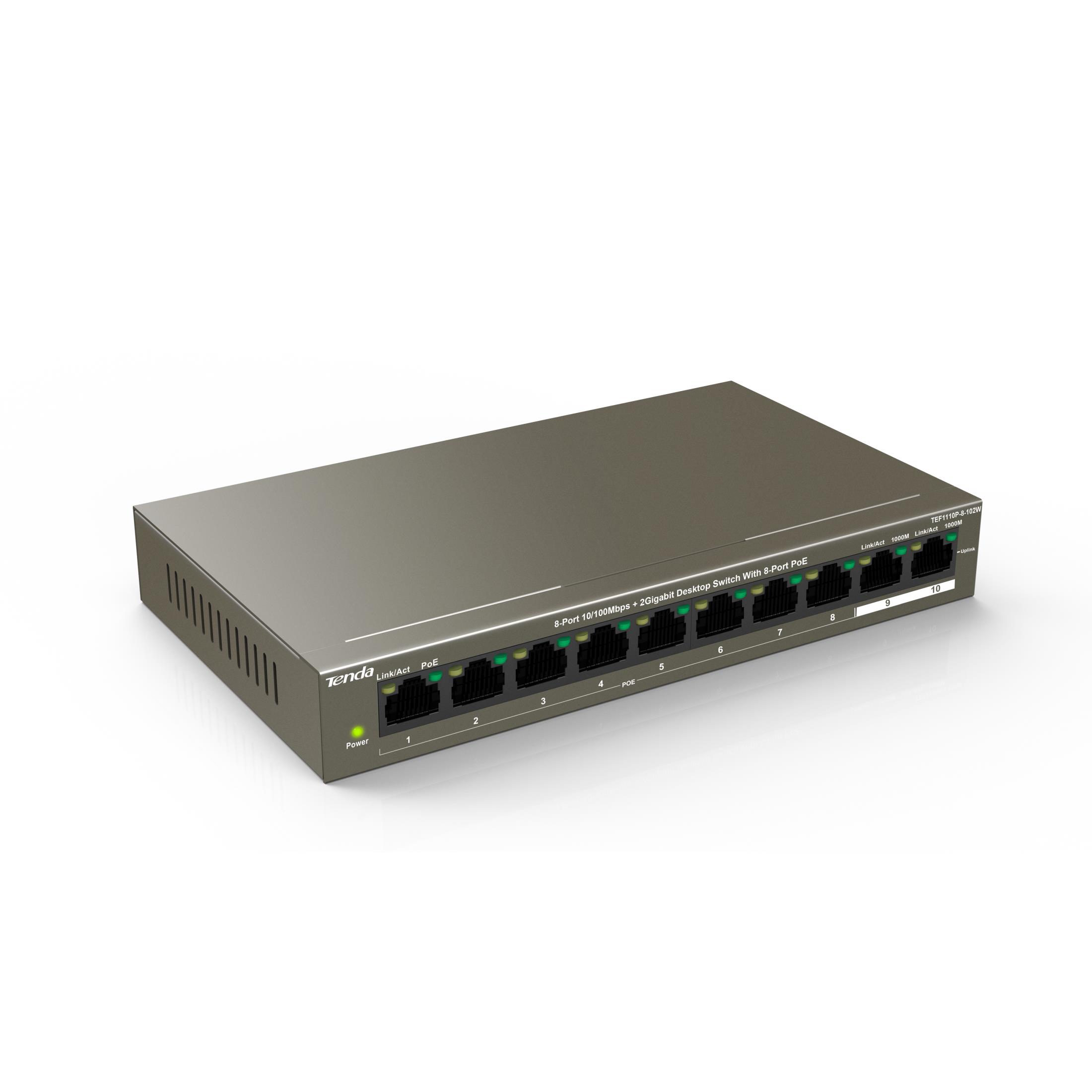

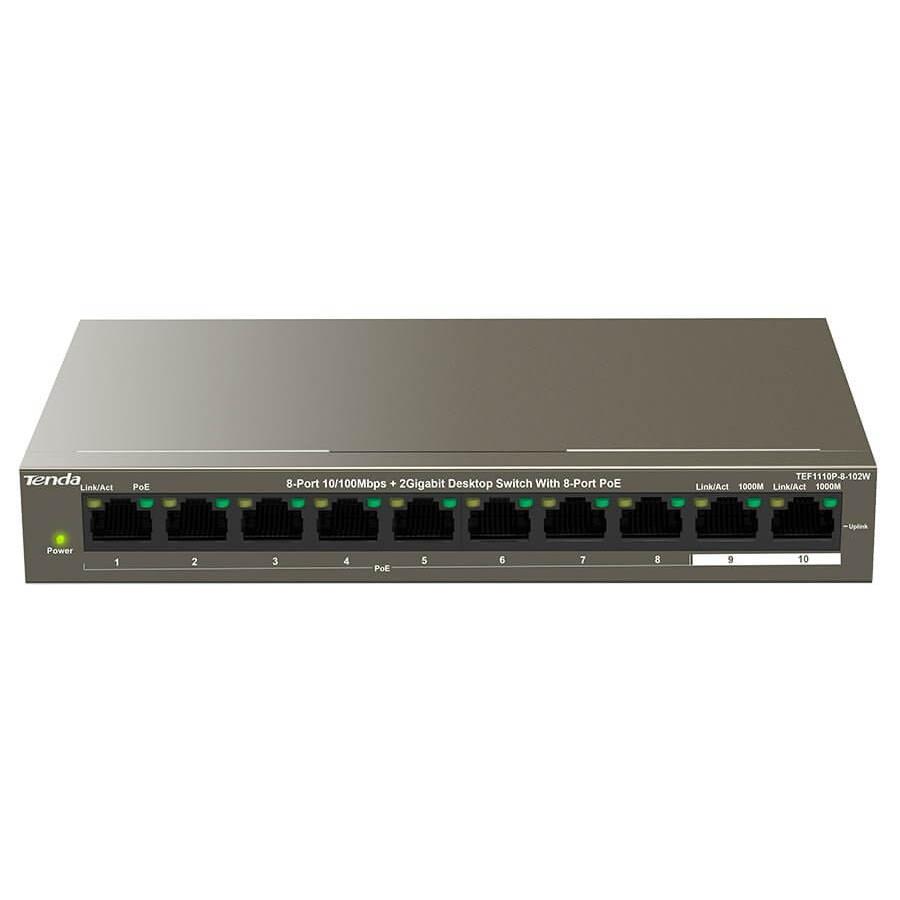

Tenda TEF1110P-8-102W 8-port 10/100Mbps + 2 Gigabit Desktop with 8 PoE Switch

TEF1110P-8-102W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 99W to the whole device. Meanwhile, it provides dual gigabit uplink port to meet the needs of more equipment cascading and access. Lead security transmission power supply to a higher level TEF1110P-8-102W 8-Port10/100Mbps+2 Gigabit Desktop Switch With 8-Port PoE 6KV Port Lightning Protection | long distance transmission Maximum PoE Output Power 99W | PoE power up to 30W for each PoE port PoE+ and Dual Gigabit Uplink Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. Machine PoE maximum output power of 99W, single-port maximum output power of 30W. The two gigabit uplink ports are capable for cascade connection of more devices. Up to 250 meters long distance transmission, beyond hundred meters transfer limit Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF12 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters ; Provide gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers. 6KV lighting protection PoE switch is the real monitoring private switch In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches . Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.Tenda TEF11 series switches have professional lightning protection design – 6kV port and power supply thunder prevents. These two protection design can effectively inhibit the lightning current from the network cable and power supply, which is equivalent to add a security Walls to the entire network monitoring system. And the test standards are far higher than the requirements of the state CCC. In the thunderstorms, the monitoring network can also provide stable and reliable services to the monitoring network and ensure the normal transmission of the images.

Specification

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at

LED Indicator

10* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

8 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

5.6 Gbps

Packet forwarding rate

1.48Mpps

Buffer

448K

MAC address table

16K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 99W

Input voltage

100－240V AC 50/60Hz
51V /2.1A DC（Power Adapter ）

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Funtions

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame.
Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).
