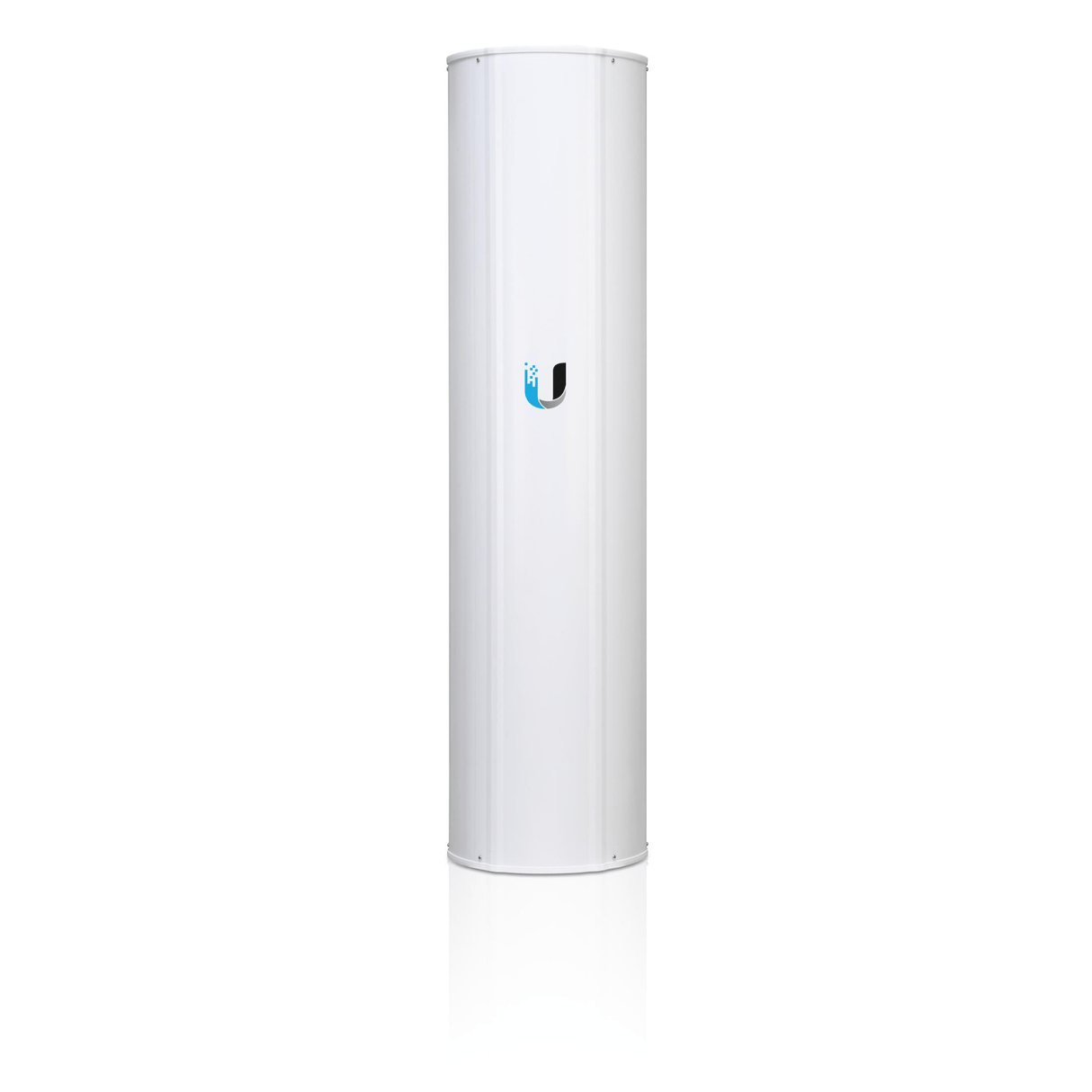

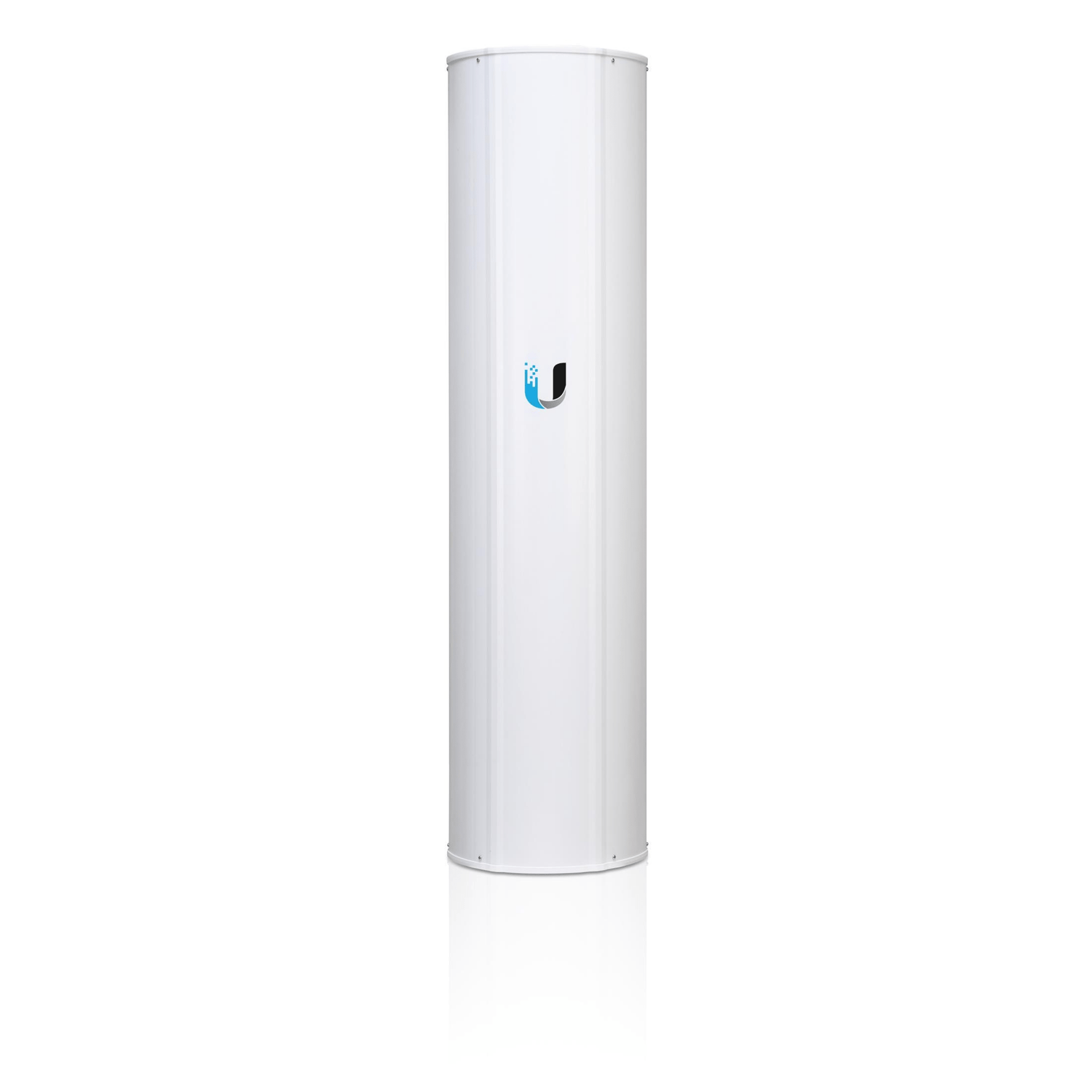

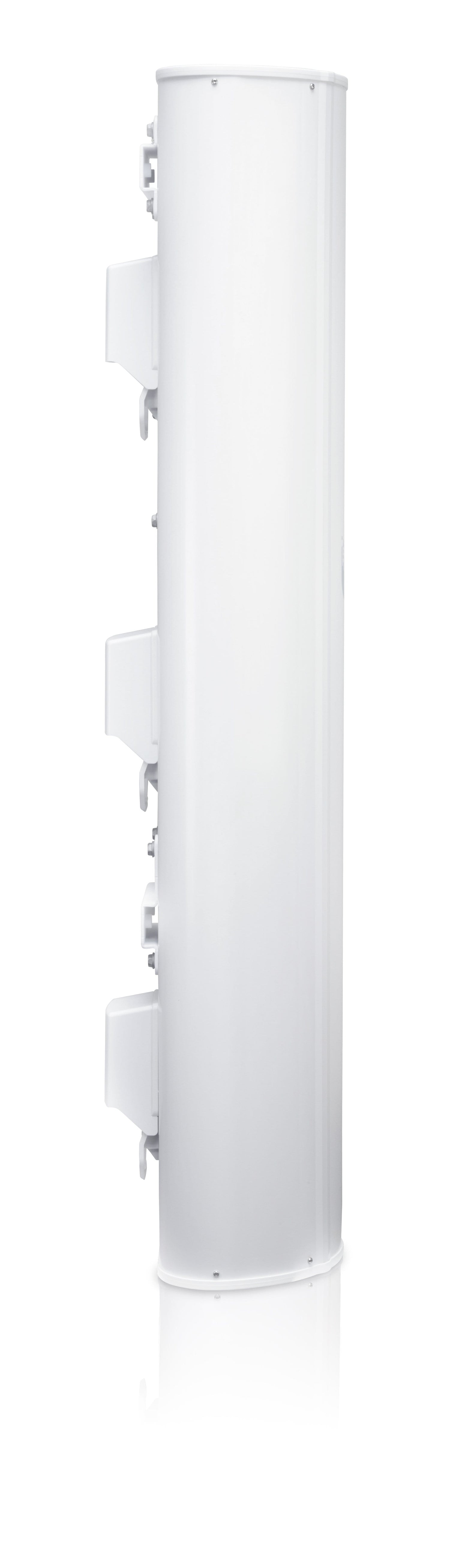

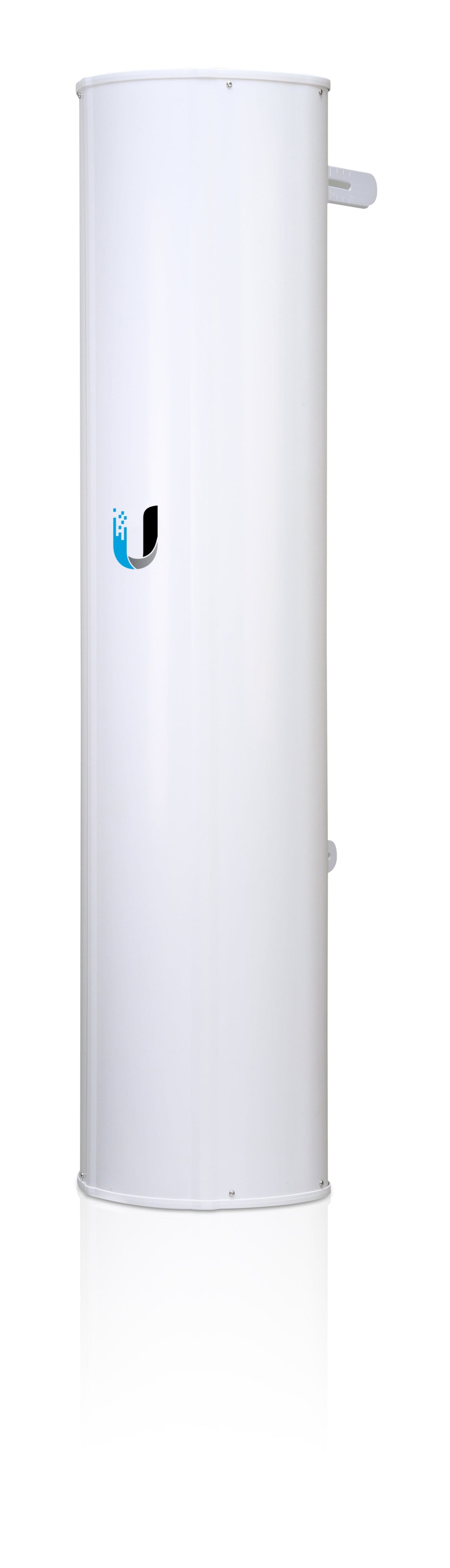

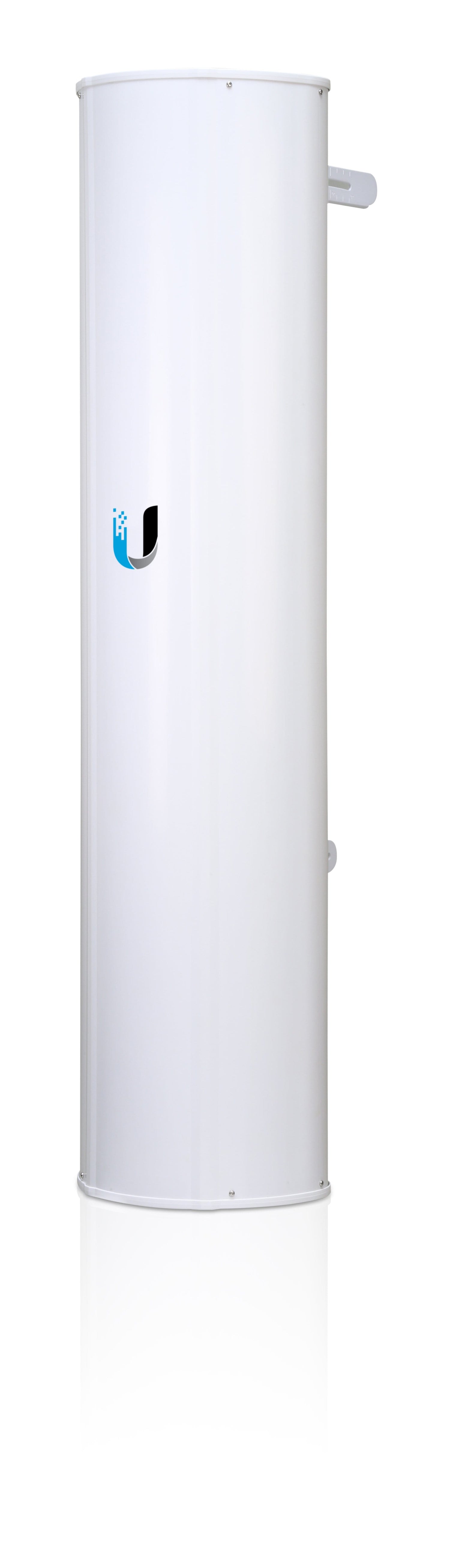

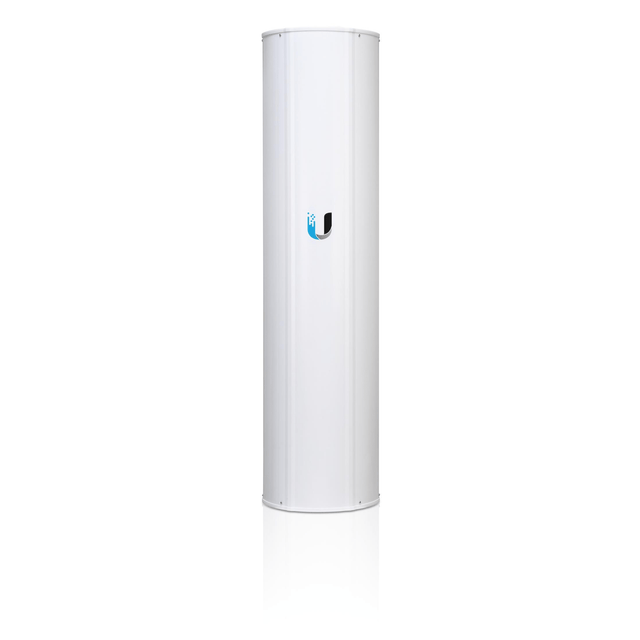

Ubiquiti 22 DBi Network Antenna AP-5AC-90-HD

Ubiquiti 22 DBi Network Antenn

5 GHz, 3x30° HD Sector Antenna
The innovative airPrism® Antenna features significant advances in noise isolation and beam performance for co‑location deployments in a multipoint network.

3 x 30° Beamwidth Coverage

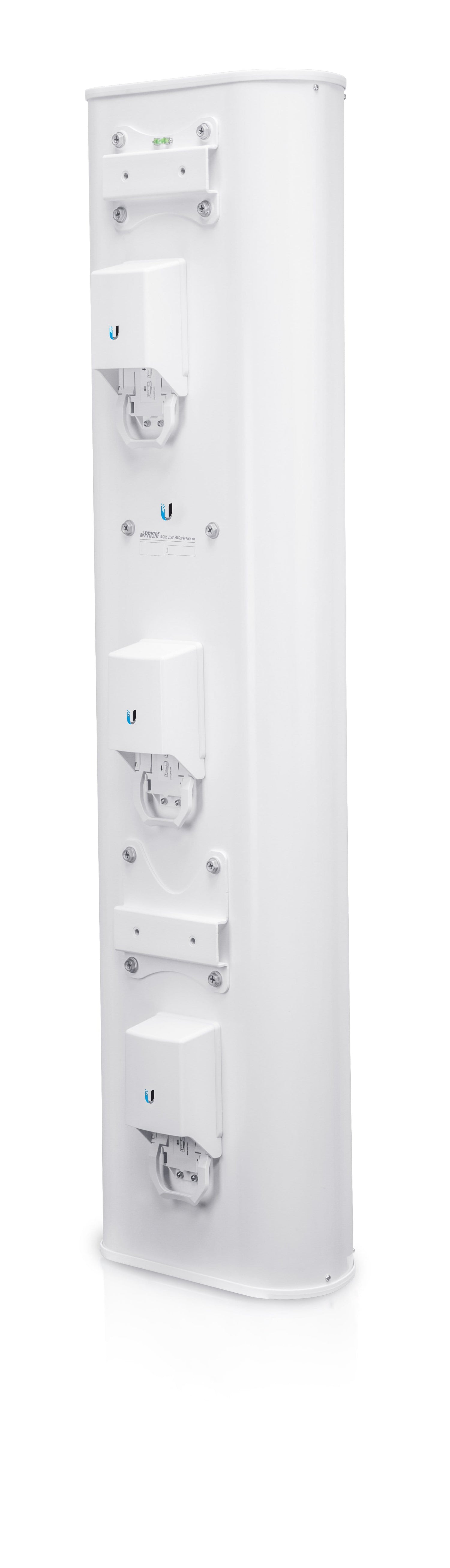

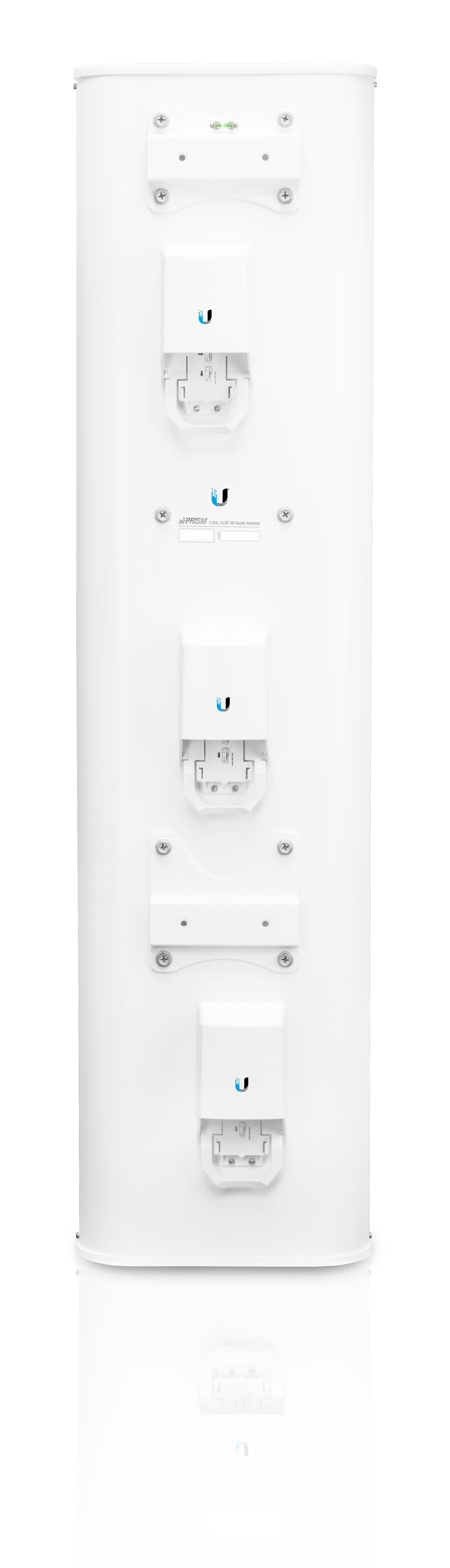

The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.

Powerful Performance
Highly resistant to noise interference, the airPrism antenna provides superior beam performance in
high-density areas for high-capacity, multipoint networks.

Breakthrough Design
Mounted on a single airPrism antenna, three Rocket5ac Prism radios maximize throughput in an efficient
tower footprint, minimizing installation and tower costs.

Specifications:

• Ubiquiti Networks AP-5AC-90-HD
• Antenna gain level (max): 22 dBi
• Frequency band: 5.15 - 5.85 GHz
• Horizontal beam width: 30°
• Antenna type: Sector antenna
• Antenna connector type: RP-SMA
• Polarization: Dual polarization
• Width: 322.6 mm
• Depth: 201.5 mm
• Height: 1300 mm
