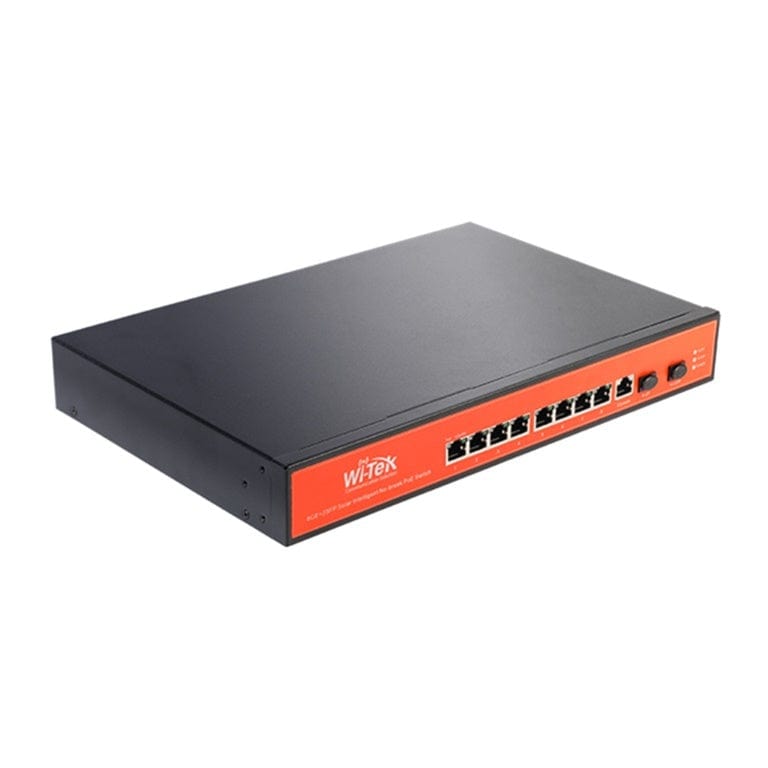

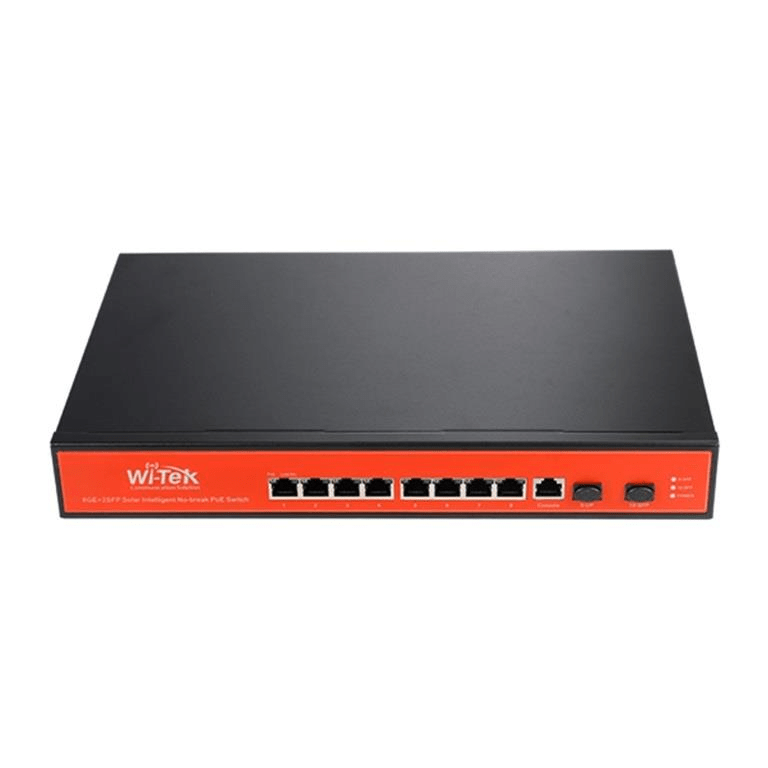

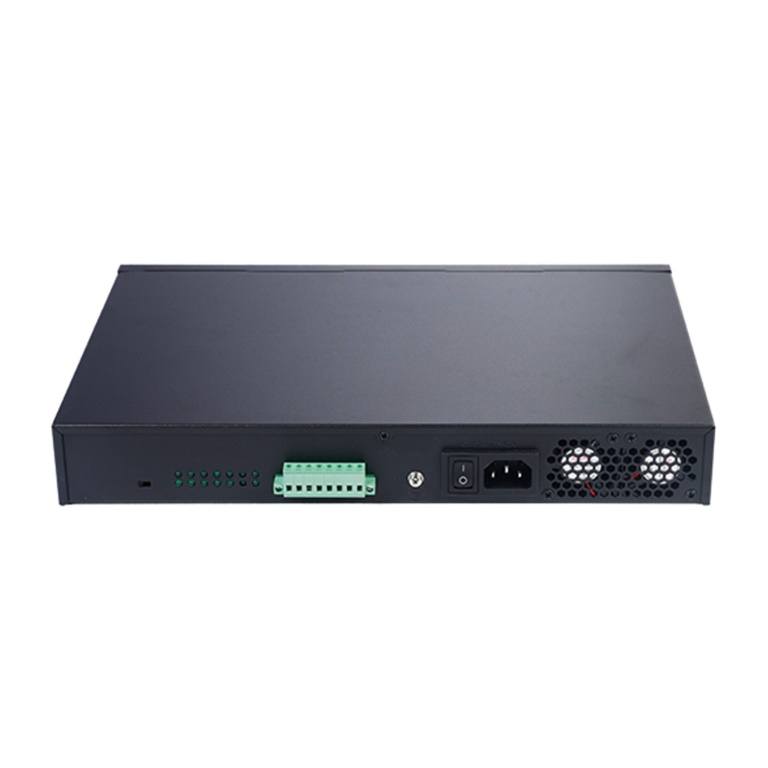

Wi-Tek 8-port GbE PoE Managed Solar Network Switch with 2x SFP Ports WI-PMS310GF-UPS+ V2

Wi-Tek 8-port GbE PoE Managed Solar Network Switch with 2x SFP Ports

Wi-Tek UPS No-Break Solar PoE Switch Serial is designed for CCTV surveillance and wireless network, including unmanaged and layer 2 managed solar PoE switches. Based on its green energy, it can be charged by the inexhaustible and natural source of energy solar power. It can conserve green energy economically and power the remote IP cameras and wireless AP, especially used for expansive applications such as dams, forests, deserts, national parks, and highways.

Built-in MPPT (Maximum Power Point Tracking), (Charge Controller)

An MPPT(Maximum Power Point Tracker) is an electronic DC to DC converter that optimizes the match between the PV solar panels and the battery bank or utility grid. They convert a higher voltage DC output from solar panels to the lower voltage needed to charge the battery effectively.

Zero-Carbon and Stable Power Supply

The 24V/24 batteries get recharged by the solar power and then keep powering PoE Powered Devices without the need for any power. Its zero-carbon feature is made possible as the energy the unit gets is renewable. More importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.

Battery Working Status Monitoring and LED Indicator

The administrator can monitor the current status of PoE power usage easily and efficiently via its LED indication. The panel of the switches has LED indicators of different battery levels.

Layer 2 Managed Powerful Functions (For L2 Managed solar PoE Switch)

Many Layer 2 functions can help you manage your Powered Devices easily, such as low voltage cut-off protection, intelligent powered device alive check, schedule power recycling, and PoE schedule for energy savings.

Features:

• 8x 10/100/1000Mbps RJ45 Ports
• 2 1000Mbps SFP Slots and 1 Console Port
• Layer 2 Managed PoE Switch
• Internal power adapter supply 150W for 24V/48V PDs
• Inside solar controller and battery controlle
• Up to 4k QVLANs simultaneously
• Restart AP via PoE managed page remotely
• Link Aggregation Control Protocol (LACP)
• Web and cli, enjoy more configuration option

Specifications:

Hardware Version: V2

Interface: 8x 10/100/1000Mbps RJ45 Ports; 2x 1000Mbps SFP Slots; 1x Console Port

PoE Ports (RJ45): Port 1-8: 802.3af/at PoE 1/2/4/5 (+), 3/6/7/8 (-); Passive 24V PoE 4/5(+), 7/8(-)

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m); 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Fan Quantity: 2 Fans

Power Consumption: 150W (max. with PoE device connected)

Power Supply: AC 110~240V  50/60HZ

Power Priority: Solar Power - AC - Battery

Solar Controller Input: 12/24V 500W Max

Battery Type: Lead acid / lithium / lifepo4

Battery Input: 12/24V 20A

Exchange Capacity: 20Gbps

Packet Forwarding Rate: 14.88Mpps

Mac Address Table: 8k

Packet Buffer Memory: 1.5Mb

Protection Level: 6kV Lightning protection; 6kV ESD Contact discharge
