YoloLiv YoloBox Portable Multi-Camera Live Encoder YOYLBOX

YoloLiv YoloBox Portable Multi-Camera Live Encoder

Sporting an LCD touchscreen for control, the YoloLIV YoloBox Portable All-in-One Multi-Camera Live Streaming Encoder, Switcher, Monitor, and Recorder can simultaneously broadcast to 3 platforms. Simply connect up to 6 video sources, then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large touchscreen display shows the streaming image as well as the input streams; the LCD display also shows the control interface, which allows you to switch between the info sources with a touch.

The YoloBox supports input resolutions of 720p and 1080i/p, and streams at your choice of 540p, 720p, and 1080p60, using the H.264 codec. You can stream to YouTube via custom RTMP settings. Stream using a 4G Cellular network such as Verizon, T-Mobile, and AT&T. The YoloBox features an HDMI out, which allows you to display your stream locally on an HDMI device. It also has a line-level audio input, and a discrete headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot.

Features:

• Touch control without a computer
• Built-in simultaneoulsy streaming
• Stream via Ethernet, Wi-Fi, LTE 4G
• Live switch up to 6 sources

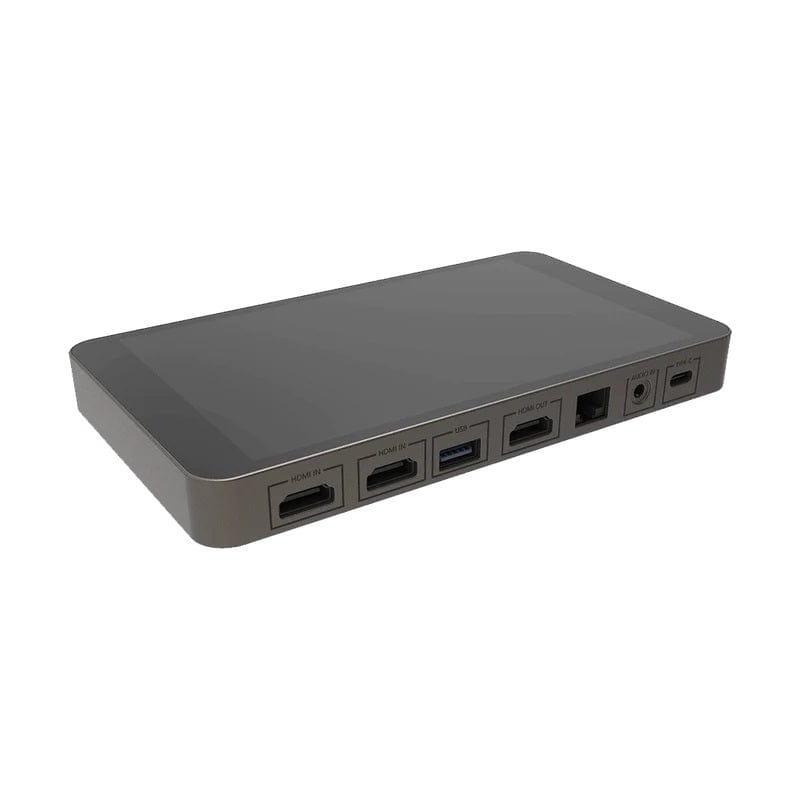

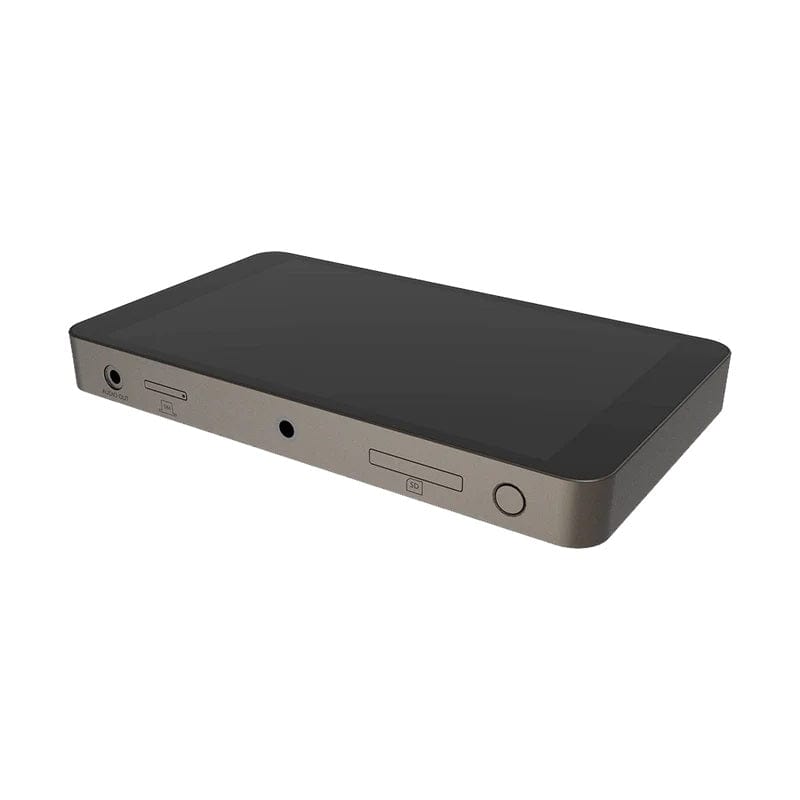

• 2 x HDMI, 1 x USB In, 1 x SD card, 1 x PDF; 1 x HDMI out; Audio in & out
• Add logos/comments to the stream
• Import pictures/videos from SD card
• Records internally to SD card
• Direct integration with YouTube/Facebook/RTMP(s)
• Supports up to 1080p60

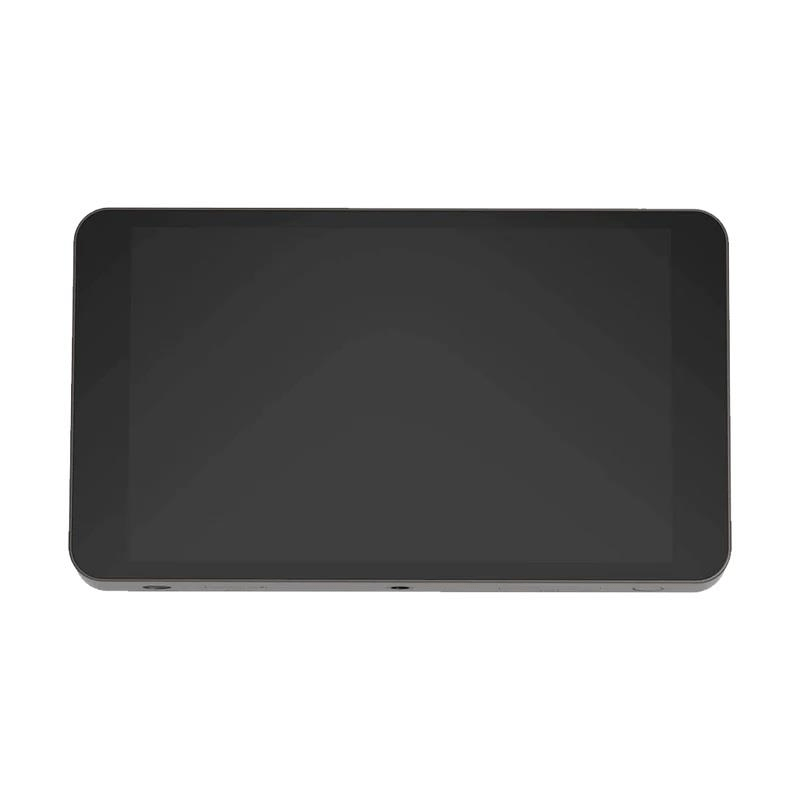

• Touchscreen Control
• The YoloBox provides you with a large touchscreen interface for easy streaming and control.

Functions:

• The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.
• You can brand your live stream by adding logos/watermarks/rolling captions
• Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
• Engage with your audience in real time via feature comment overlays
• The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
• Built-in lower-thirds templates can be edited or you can add your own
• Internet
• You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.
• Simultaneous Streaming
• YoloBox will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.

Streaming Platforms

• Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.
• RTMP protocols allow you to stream to custom RTMP destinations including YouTube.
• SD Card Input
• Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.
• PDF
• You can load a PDF as a local source to your YoloBox
• Battery Life
• The internal battery can power your YoloBox for approximately 3 hours. The YoloBox charges via the USB connection, which is used for power only.

Specifications:

• Touchscreen Control Streaming Encoder
• Simultaneous Cross-Platform Streaming
• Encoder, Monitor, Switcher, and Recorder
• Live Switch from up to 6 Sources
• 2 x HDMI, 1 x USB In; 1 x SD Card Input
• 1 x HDMI Confidence Monitor Out
• Stream via Ethernet, Wi-Fi, LTE
• Supports 1080p and 720p Resolutions
• H.264 Streaming Format
• Connect to YouTube via Custom RTMP
