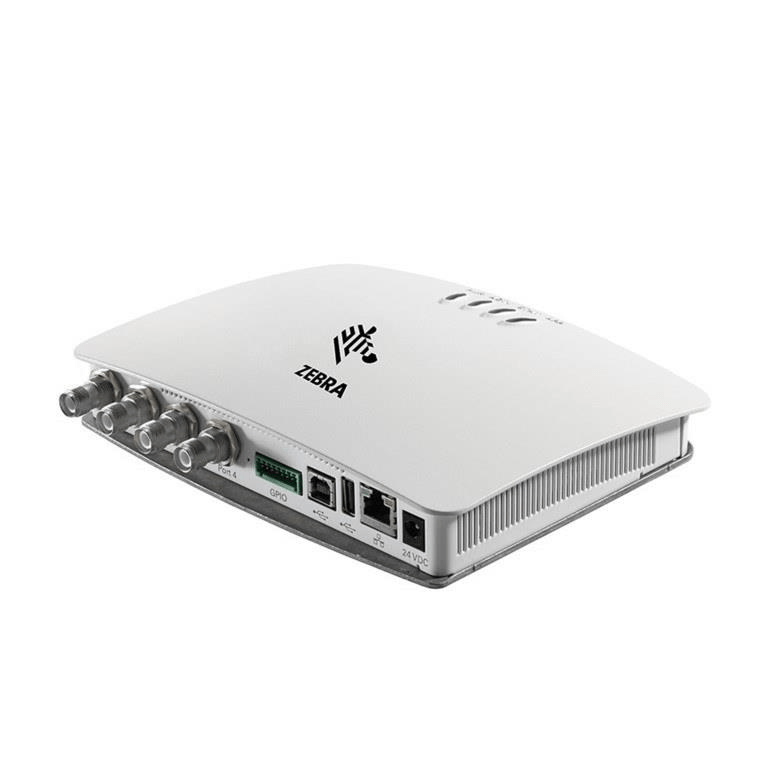

Zebra FX7500 4-port Fixed RFID Reader FX7500-42325A56-WR

Zebra FX7500 4-port Fixed RFID Reader FX7500-42325A56-WR

Advanced Fixed RFID Reader For Business Class Environments

You know that the right RFID solution can help you keep track of the people and products that matter most to you – and save valuable time and money in the process – but only if the technology can capture data quickly, accurately and cost-effectively enough to keep up with your business. The faster your business moves, the more your business-critical applications will demand from an RFID reader. And these days, no one is slowing down their pace of business.

RFID begins with the radio. So that’s where Motorola began with the Motorola FX7500 Fixed RFID Reader. We created a new RFID radio technology, purposely designed from the ground up for faster, more accurate read rates, and more consistent performance even in challenging environments. This software-based radio technology effectively future-proofs your RFID investment by delivering flexibility to implement future upgrades and improvements with minimal investment. Then we paired that radio with a new, more flexible Linux-based network architecture that integrates the tools and open-standard interfaces you need for fast, easy deployment with your RFID and back-end applications.

The result is a fixed RFID reader that sets a new performance standard – delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point. It works better. It costs less.

Features

All-new high performance radio technology

• Higher sensitivity, improved interference rejection and echo cancellation means you get the best-in-class dense reader mode performance, up to 1200+ tags/sec in FM0 mode.

Integrated Power Over Ethernet (POE), optically isolated GPIO, USB Client and Host ports with Wi-Fi and Bluetooth connectivity

• All the tools you need for fast, easy deployment and simplified ongoing management of your RFID applications are built right into the FX7500 architecture.

2-port and 4-port Reader Configurations

• More configuration options mean more flexibility to optimize your read field. Deploy precisely the number of read points you need for proper coverage, no more, no less, and reduce your TCO.

Plenum Area Rated

• The FX7500 is approved and suitable for environmental air handling space installation, so it can operate effectively within walls and ceilings.

Technical Specification

Product: Zebra FX7500 4-port Fixed RFID Reader

Communications: 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B), *No Host USB Port

General Purpose I/O: 2 inputs, 3 outputs, optically isolated (Terminal Block)

Power Supply: POE, POE+ or +24V DC (UL Approved) 12V-48VDC operation can be supported

Antenna Ports: FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)

Processor: Texas Instruments AM3505 (600 Mhz)

Memory Flash: 512 MB; DRAM 256 MB

Operating System: Linux

Firmware Upgrade: Web-based and remote firmware upgrade capabilities

Management Protocols: RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP

Network Services: DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP

Network Stack: IPv4 and IPv6

Security: Transport Layer Security Ver 1.2, FIPS-140

Air Protocols: EPCglobal UHF Class 1 Gen2, ISO 18000-6C

Shock/ Vibration: MIL- STD-810G

Mounting: Keyhole and standard VESA (75mm x 75mm)
